 Wheel Loader 767KV Tier 2 Operating Weight 21000kg Rated Load 178kW/239hp Bucket Capacity 3.3-5.5m3 |

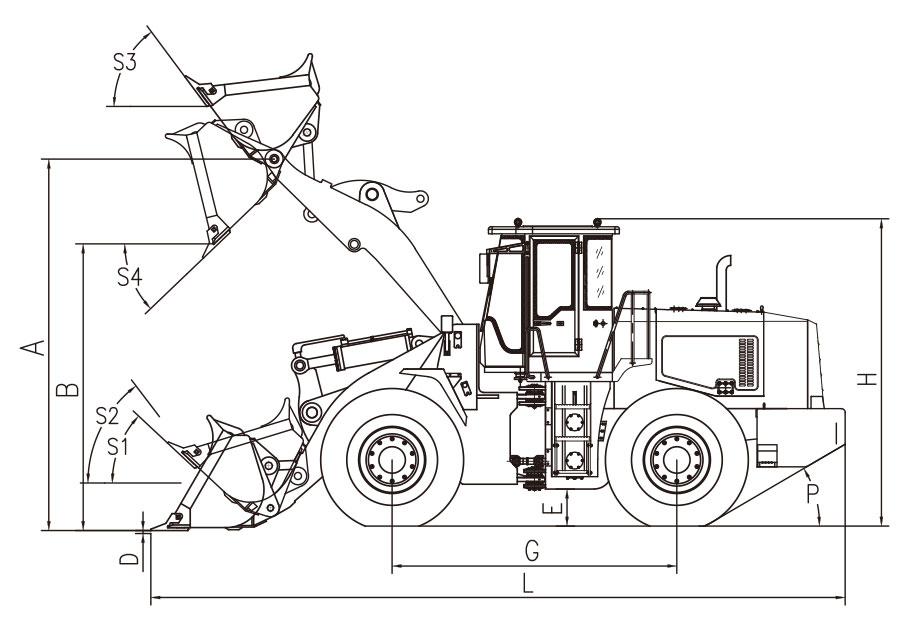

 Operating Weight 21000kg Rated Load 178kW/239hp Bucket Capacity 3.3-5.5m3 Drawing |

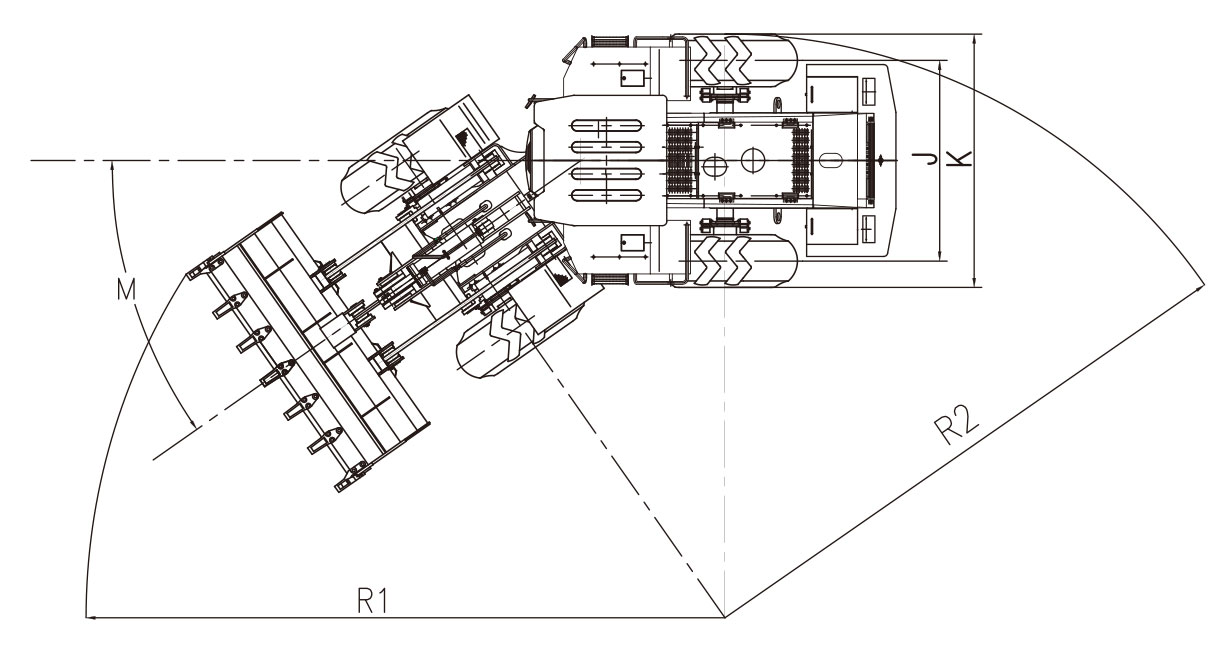

 Operating Weight 21000kg Rated Load 178kW/239hp Bucket Capacity 3.3-5.5m3 Drawing |
| Specifications | |
| Operating weight: | 21,000kg |
| Operating weight includes the work equipment stipulated by manufacturer, the unloaded attachments, driver (75kg), full-filled fuel tank, full-filled radiator, and all fluids (including the hydraulic oil, drive oil, engine oil, and engine coolant) added to the set level stipulated by manufacturer. | |
| Bucket capacity: | 3.3-5.5m³ |
| Engine | |
| Description | |
| China-III electric-control high-pressure common-rail low-rpm engine, high torque at low rpm, more powerful, lower fuel consumption and environment-friendly. Engine has the inspection port, realizing the quick inspection and maintenance on engine. Standard 93 dust rate, enabling the four matching parts to drop their rate of early wear by 90% or higher； Intake heater grille effectively solve the difficulty to start up at low temperature. Hyperboloid fan makes the heat dissipation more effective and the noise lower. Common-rail electric-control fuel injection technologies not only increase the efficiency of the fuel consumption, also drop the engine noise and the displacement of exhaust gas. The inter-cooler is mounted to drop the temperature of the supercharged air and thus to increase the intake efficiency. Accordingly, that drops the consumption temperature and NOx content in exhaust gas. |
|
| Emission grade | Tier 2 |
| Manufacturer | Weichai |
| Model | WP10G240 |
| Total power of engine (SAE J1995/ISO 14396) | 178 kW (239hp) @ 2000 rpm |
| Net power of engine (SAE J1349/ISO 9249) | 169 kW (227hp) @ 2000 rpm |
| Max. torque | 980 N.m |
| Displacement | 9.726 L |
| Number of cylinders | 6 |
| Intake type | Turbocharger ＆ inter-cooler |
| Drive Axle | |
| Type | Meritor drive axle |
| Swinging angle | ±10° |
| Drive Parts | |
| Description | |
| Planetary-type power-assisted transmission from Hangzhou Advance Gearbox Co., Ltd., single-stage four-element twin-turbo hydraulic torque converter features less gears, large traction force and is in good match with engine and transmission; Feicheng Yunyu 60 drive axle. |
|
| Power-train type | Drive axle, Power gear-shifting |
| Torque converter | Single-stage, Four elements |
| Max. traveling speed, forward | 37 km/h |
| Max. traveling speed, backward | 17 km/h |
| Gears, forward | 2 |
| Gears, backward | 1 |
| Fluid Level | |
| Fuel | 290 L |
| Engine oil | 24 L |
| Antifreeze | 68 L |
| Hydraulic oil | 290 L |
| Drive oil | 54 L |
| Drive axle / single | 51 L |
| Hydraulic System | |
| Description | |
| This hydraulic system is of dual-pump confluence and steering - prevailing type, featuring the high efficiency and low fuel consumption. Full hydraulic coaxial flow steering amplification system, with light and flexible steering and reliable operation; High-precision paper filter element is used for oil suction and return of hydraulic oil tank to ensure the cleanliness of hydraulic system; High-standard in the industry and new technology hydraulic components to improve the reliability of hydraulic system. |
|
| Work pump type | Gear pump |
| System pressure | 18 MPa |
| Lifting duration | 6.5 s |
| Unloading duration | 1.6 s |
| Lowering duration | 3.6 s |
| Sum of three durations | ＜12 s |
| Control type | Pilot control |
| Brake | |
| Description | |
| Full-hydraulic dual-pipeline disc brake system; three pliers on one wheel; parking brake being of cable-controlled disc brake; main brake elements are exported and of high quality, making a braking safer and more reliable. | |
| Type of service brake | Disc brake |
| Type of service brake | Hydraulic ‒ pliers disc type |
| Type of parking brake | Clamp type brake |
| Type of parking brake | Cable control |
| Control Type | |
| Description | |
| Steering system: articulated steering by steering wheel System supply: full-hydraulic coaxial flow-amplification steering system, flexible and easy steering and reliable performance Steering cylinder: two action cylinders |
|
| Steering type | Steering wheel |
| Steering pressure | 16 MPa |
| Number of cylinders | 2 |
| Diameter of cylinder bore | 100 mm |
| Diameter of piston rod | 55 mm |
| Travel of cylinder | 324 mm |
| Displacement of pump | 80 ml/r |
| Steering angle | ±35° |
| Min. Steering (outside of tire) | 6,980 mm |
| Cab | |
| Description | |
| The new KV luxury cab is equipped with heating and cooling air-conditioning, adjustable directional column and sunshade, fire extinguisher, safety hammer, adjustable seat, USB charging, etc., which greatly improves driving comfort. The left side of the cab enters unilaterally, the door opens forward, and the width of the exit is increased by 20%. There is no threshold design, which is more convenient for drivers to going and out; The right window is equipped with a glass frame that can be pushed up and down; The front window of cab is hyperboloid toughened glass, which has wide visual field and good sound insulation performance. The cab adopts four-point elastic suspension and two-way shock absorption; Used sound-absorbing materials to reduce noise, and used floor mats for sound insulation, which reduced indoor noise. |
|
| Noise & Air Conditioner | |
| Cab noise In line with ISO 6396-2008 / EN ISO 3744-1995 | 83 dB(A) - Travel mode |
| Cab noise In line with ISO 6396-2008 / EN ISO 3744-1995 | 84 dB(A) - Stationary work cycle mode |
| Outdoor noise | 110 dB(A) - Travel mode |
| In line with ISO 6395-2008 | |
| Outdoor noise | 111 dB(A) - Stationary work cycle mode |
| In line with ISO 6395-2008 | |
| Heating capacity of A/C | 5 kW (7.8 hp) |
| Refrigerating capacity of A/C | 4.7 kW (8 hp) |
| Electronic System | |
| Description | |
| GPS (Global Positioning System) Brand-new intelligent instrument system is able to monitor the real-time work conditions of complete vehicle. Updated smart control system with independent intellectual property has the remote diagnosis system which could provide the fast and accurate solution to customer in case of failure. Reversing alarm could make the driving safer. |
|
| Voltage | 24 V |
| Battery | 2 x 12 V |
| Battery capacity | 2 x 120 Ah |
| Capacity of cold startup | 850 A |
| Reserve capacity | 230 min |
| Grade of AC generator | 1,960 W / 70 A |
| Output of starter motor | 7.5 kW |
| Performance Parameters | |
| Description | |
| Tilting load is calculated with standard bucket of 4 m3 and 21000kg of operation weight. | |
| Tipping load - straight according to ISO 14397-1:2007 | 12,400 kg |
| Tilting load - full turning | 11,000 kg |
| in line with ISO 14397-1：2007 | |
| Breakout force | >200 kN |
| A Hinge pin height at Max. height | 4,373 mm |
| B Unloading height | 3,215 mm |
| C Dumping height at max. height | 1,165 mm |
| D Breakout depth | 50 mm |
| S1 Max. tilt angle at ground level | 45° |
| S2 Max. tilt angle at carry | 48° |
| S3 Max.tilt angle at max. height | 53° |
| S4 Dumping angle | 45° |
| Dimensions | |
| E - Ground clearance | 487 mm |
| G - Wheelbase | 3,470 mm |
| H - Cab height | 3,560 mm |
| J - Wheel tread | 2,268 mm |
| K - Outside width of tire | 2,953 mm |
| L - Overall length (with the attachments) | 8,380 mm |
| M - Steering angle, at any side | 35° |
| P - Departure angle | 32° |
| R1 - Min. turning radius with bucket at transporting position | 7,635 mm |
| R2 - Turning radius, at outside of tire | 6,980 mm |
| Tire |
| Proper tires for your machine will become the key competitive edge of excellent performance. Through closely and jointly development and cooperation with well-known supplier which is carefully selected, we could provide the full-series tires specially customized for wheeled loader. |
| # | Application | Picture | Sizes | PR/* | Tube Type | Width | Overall Diameter |
Depth of Tread | Loading Capacity, 50km/h/10km/h |
| L2 | - At site with good traction, for example, on slope with smooth gradeability. - Work at soft and muddy site without sharp rocks. - In all loading/transporting conditions. |
 L2 Tire |
26.5-25 | 16 | TL | 675 mm |
1,750 mm |
29.5 mm |
7,300/ 11,500kg |
| 26.5-25 | 20 | TL | 675 mm |
1,750 mm |
29.5 mm |
8,250/ 9,500kg |
|||
| L3 | - Work in sandy conditions - In all types of loading/carrying operations - Unlike L2, L3 tread is narrow and les self-cleaning effect |
 L3 Tire |
26.5-25 | 24 | TL | 675 mm |
1,750 mm |
35 mm |
9,050/ 14,000kg |
| 26.5-25 | 28 | TL | 675 mm |
1,750 mm |
35 mm |
10,000/ 15,500kg |
|||
| 26.5-25 | 32 | TL | 675 mm |
1,750 mm |
35 mm |
11,200/ 17,000kg |
|||
 L3 Tire |
26.5R25 | * | TL | 675 mm |
1,750 mm |
36 mm |
9,000/ 15,000kg |
||
| 26.5R25 | ** | TL | 675 mm |
1,750 mm |
36 mm |
11,500/ 18,500kg |
|||
| Note: Radial tire has its load-bearing capacity represented with stars *. The more stars means the radial tire has more load-bearing capacity. The special radial tire dimensions listed in table 2 stars (**) means the max. load-bearing capacity of radial tire. |
|||||||||
| Parameters of Work Equipments | |||||||
| Item | Rock Bucket |
General Bucket |
Coal Bucket |
High-position unloading | Unit | ||
| Regular Bucket |
Coal Bucket |
Enlarged Bucket |
|||||
| Bucket capacity | 3.3 | 4 | 4.5 | 3.5 | 4.5 | 5.5 | m³ |
| Rated load | 6000 | 6000 | 6000 | 5500 | 5500 | 5500 | kg |
| Complete vehicle weight | 21100 | 21200 | 21220 | 21600 | 21820 | 21920 | kg |
| Dumping height | 3250 | 3135 | 3115 | 3565 | 3485 | 3450 | mm |
| Dumping distance | 1150 | 1180 | 1205 | 1450 | 1575 | 1610 | mm |
| Overall length | 8254 | 8520 | 8520 | 8816 | 8953 | 9150 | mm |
| Min. Steering Radius (edge of bucket ) |
7540 | 7825 | 7825 | 8035 | 8130 | 8250 | mm |
| The product structures and parameters may alter with the technology updating, without any notice in advance. If sample differs from the actual product, the latter prevails. | |||||||
| Standard Configurations | ||
| Engine | Steering system | Instrument |
| Weichai WP10, Tier 3 Engine output power 178KW (239 hp), air-to-air cooling, six cylinders and four strokes Pre-filtration of oil-water separator Fuel filter Direct-drive fan Cold start device |
Full-hydraulic coaxial flow-amplification steering system and steering-prevailing | Engine coolant temperature Transmission oil temperature Fuel level meter Timer Voltage Brake pressure Charging of battery Steering lamp Transmission oil pressure alarm High-beam indicator |
| Drive | Tire | Cab |
| Planetary-type power-assisted transmission from Hangzhou Advance Gearbox Co., Ltd. Startup function, forward four gears, neutral gear and backward two gear Transmission oil level detector Secondary oil filter, oil bar Remote pressure switch for diagnosis |
26.5-25 / L3 diagonal tire Regular mudguard |
Seat Dual-direction adjustable steering column Large-arc window Rubber cushion Two sides of rearview mirror One cup holder Sunvisor |
| Drive Axle | Frame assembly | Others |
| Meritor drive axle Hydraulic-pliers disc type break Clamp disc parking brake |
Spacious central articulation arrangement with conic bearing Articulated locking lever Draw bar |
On-board tools and attachments |
| Hydraulic system | Electrical system | |
| Pilot control Dual-pump confluence hydraulic system |
Two headlamps, low beam/ high beam On the top of cab, there are two headlamps Battery, maintenance-free 24V power socket Electric horn Wiper of windshield Radio/ player with USB port Reversing warning lamp Heating/cooling A/C |
|
| Optional Configurations | ||
| Engine | Axles and Tires | Others |
| Cummins engine Tie III Oil-bathed dual-layer air filter |
Check the front tire specifications Tire protective chains |
Automatic central lubrication Automatic weighing device Sub blade |
| Hydraulic System | Cab | Transmission |
| Flexible shaft operation | Luxury seat | DANA transmission |
