RPM supplies customizable-brand Wheel Loader 737K, Tier 2 with good prices/performances ratio made by good-reputation manufacturer Since 1993.

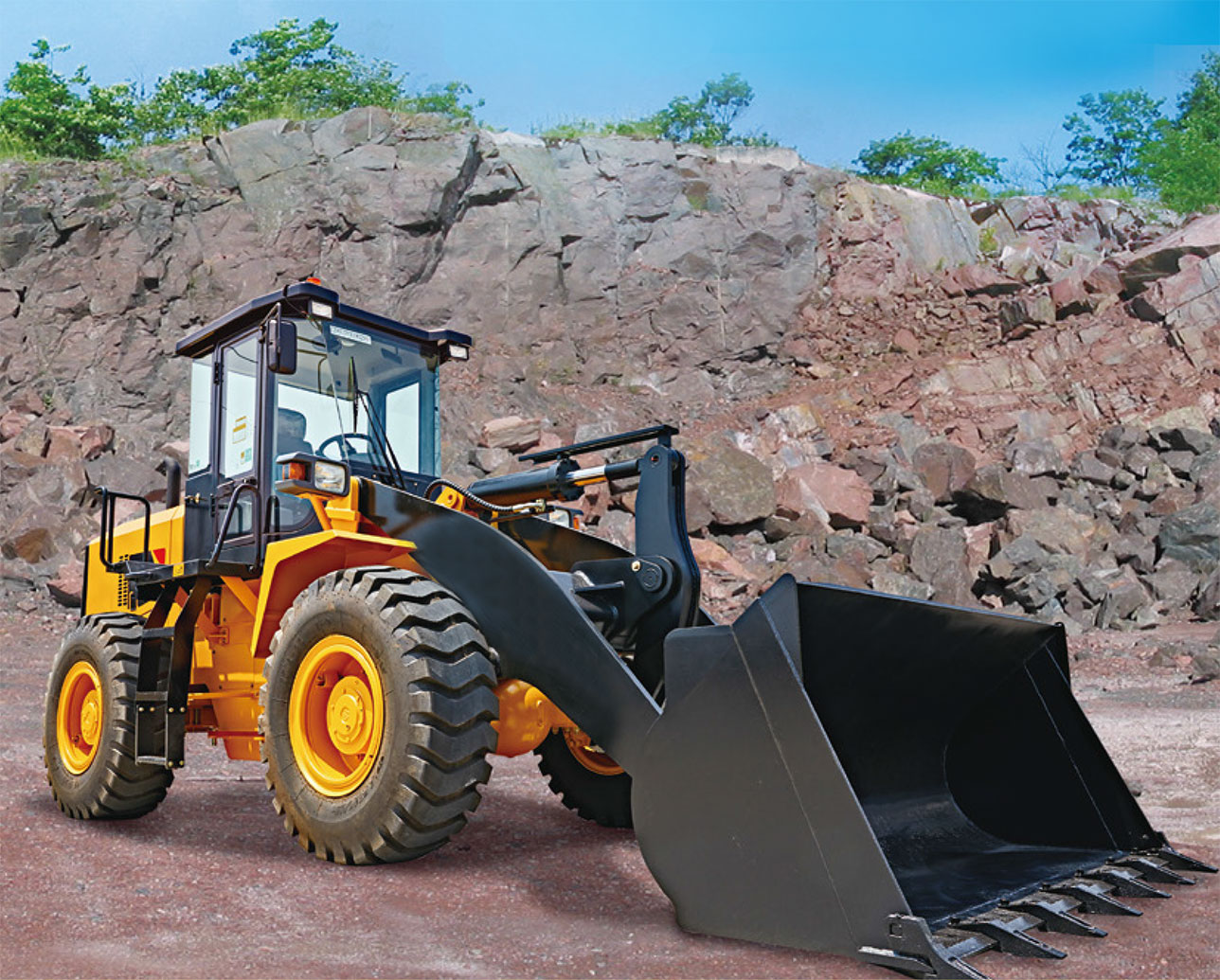

 Wheel Loader 737K Tier 2 Operating Weight 10300kg Rated Load 92kW 125hp Bucket Capacity 1.7m3 |

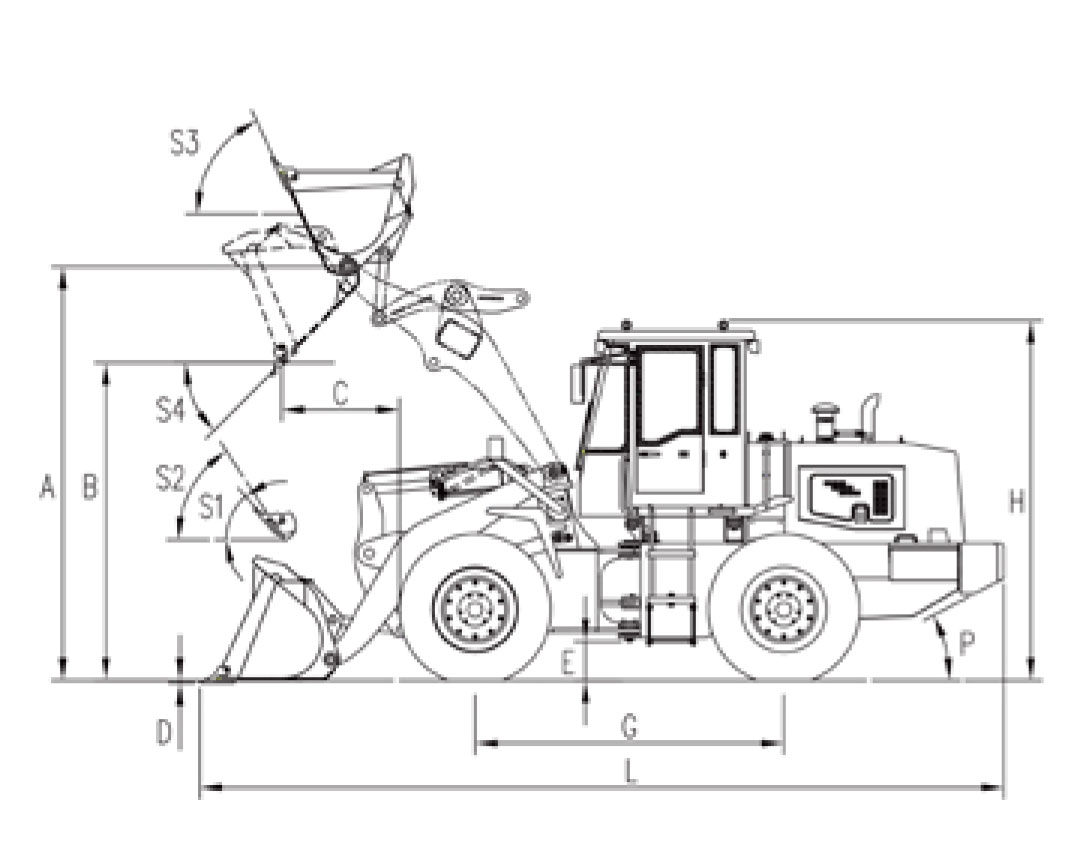

 Wheel Loader 737K Tier 2 Operating Weight 10300kg Rated Load 92kW 125hp Bucket Capacity 1.7m3 Drawing |

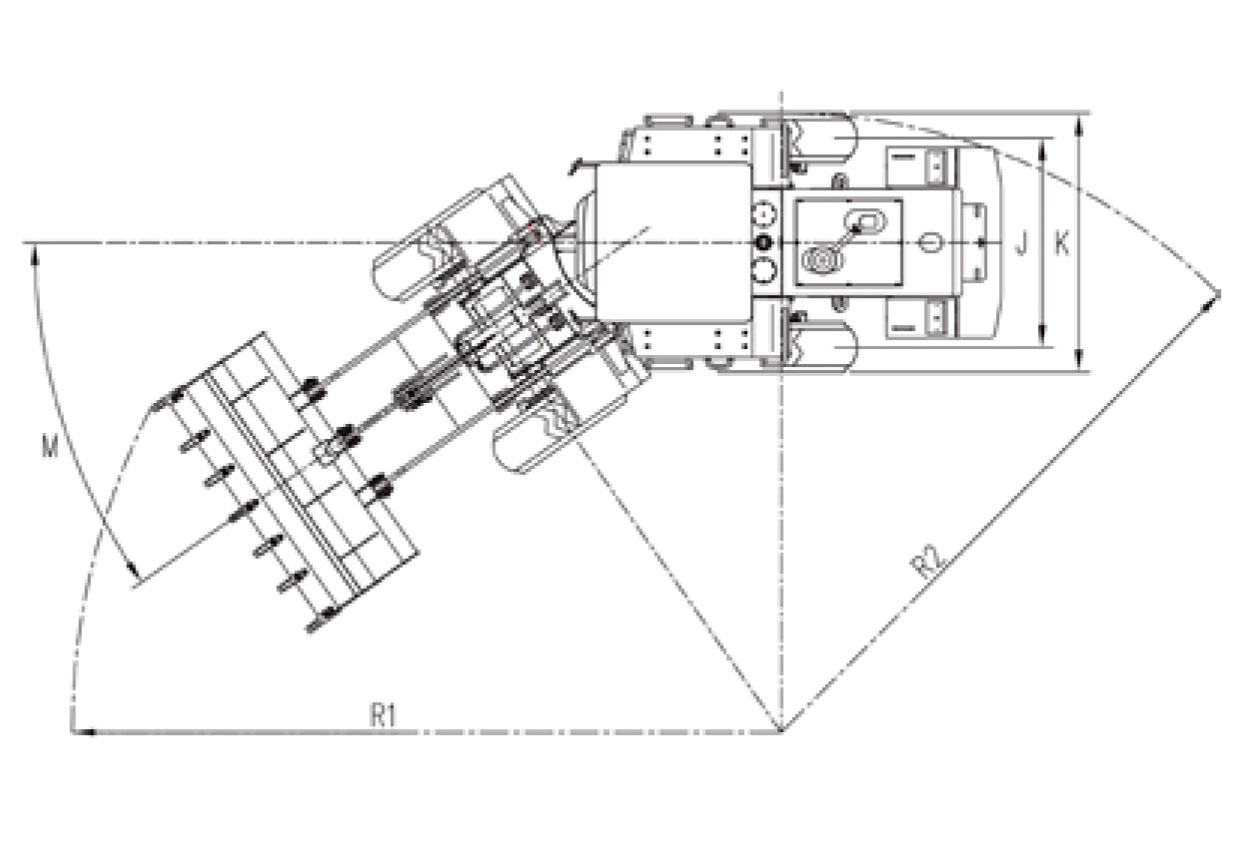

 Wheel Loader 737K Tier 2 Operating Weight 10300kg Rated Load 92kW 125hp Bucket Capacity 1.7m3 Drawing |
| Specifications | |
| Operating weight: | 10, 300kg |
| Operating weight includes the work equipment stipulated by manufacturer, the unloaded attachments, driver (75kg), full-filled fuel tank, full-filled radiator, and all fluids (including the hydraulic oil, drive oil, engine oil, and engine coolantadded to the set level stipulated by manufacturer. | |
| Bucket capacity: 1.3-2.5m³ | |
| Engine | |
| Description | |
| International famous brand Weichai WP6G125 engine with large torque reserve, stronger power and lower fuel consumption. Six cylinders, in-line, water-cooled, four-stroke, direct injection. | |
| Emission grade | Tier2 |
| Manufacturer | Weichai |
| Model | WP6G125E23 |
| Total power of engine (SAEJ1995/ISO 14396) | 92 kW (125hp) @ 2300 rpm |
| Max. torque | 500 N.m |
| Displacement | 6.75 L |
| Number of cylinders | 6 |
| Intake type | Turbocharger |
| Fluid Level | |
| Fuel | 180 L |
| Engine oil | 14 L |
| Antifreeze | 47 L |
| Hydraulicoil | 180 L |
| Drive oil | 38 L |
| Drive axle/single | 40 L |
| Drive Parts | |
| Description | |
| Axis-fixed drive transmission developed by us has four forward gears and two backward gears, featuring the reliable quality and high efficiency. Three-element single turbo hydraulic torque converter. | |
| Power-train type | Drive axle, Power gear-shifting |
| Torque converter | Single-stage, Three elements |
| Max. traveling speed, forward | 36 km/h |
| Max. traveling speed, backward | 29 km/h |
| Gears, forward | 4 |
| Gears, backward | 2 |
| Drive Axle | |
| Type | Feicheng Yunyu 30 Axle |
| Swinging angle | ±10° |
| Hydraulic System | |
| Description | |
| This hydraulic system is of dual-pump confluence and steering- prevailing type, featuring the high efficiency and low fuel consumption. Hydraulic pump is of high-pressure gear pump, featuring the excellent performance and higher reliability.Hydraulic elements are of high standard and new process type, making its system more reliable. | |
| Work pump type | Gear pump |
| System pressure | 16 MPa |
| Lifting duration | 5.1 s |
| Unloading duration | 1.4 s |
| Lowering duration | 2.6 s |
| Sum of three durations | ≤9.1 s |
| control type | control handle |
| Brake | |
| Description | |
| The service brake is of Air-against-oil caliper disc brake type and the parking brake is of cable-control type clamp brake type. | |
| Type of service brake | Caliper disc brake |
| Type of service brake | Air-against-oil |
| Type of parking brake | Clamp type brake |
| Type of parking brake | Cable control |
| Control | |
| Description | |
| Steering system:articulated steering by steering wheel.System supply:full-hydraulic coaxial flow-amplification steering system, flexible and easy steering and reliable performance. Steering cylinder:two action cylinders. | |
| Steering type | Steering wheel |
| Steering pressure | 12 MPa |
| Number of cylinders | 2 |
| Diameter of cylinder bore | 80 mm |
| Diameter of piston rod | 45 mm |
| Travel of cylinder | 362 mm |
| Working pump | 100 ml/r |
| Steering angle | ±35° |
| Min. Steering (outside of tire) | 5516 mm |
| Cab | |
| Description | |
| Brand-new designed cab is equipped with high-end, luxury seat, adjustable steering gear, finger-controlled gear-shifting switch and pilot control; spacious panoramic cab is resistant to dust, shock or noise, make the driver safer and more comfortable to control.Trim being of composite material; cab is equipped with sunvisor and wire-coiled carpet with elegant appearance. Cabis equipped with four-point elastic suspension, absorbing shockin dual way. Rear hood has beautiful modeling, with its side door and rear window able to open, featuring easy maintenance. |
|
| Noise & Air Conditioner | |
| Cab noise In line with ISO 6396-2008/EN ISO 3744-1995 | 83 dB (A) - Travel mode |
| Cab noise In line with ISO 6396-2008/EN ISO 3744-1995 | 84 dB (A) - Stationary work cycle mode |
| Outdoor noise, In line with ISO 6395-2008 | 110 dB (A) - Travel mode |
| Outdoor noise, In line with ISO 6395-2008 | 111dB (A) - Stationary work cycle mode |
| Heating capacity of A/C | 5 kW (7.8 hp) |
| Refrigerating capacity of A/C | 4.7 kW (8 hp) |
| Electronic System | |
| Description | |
| GPS (Global Positioning System) Brand-new intelligent instrument system is able to monitor the real-time work conditions of complete vehicle. Updated smart control system with independent intellectual proper- ty has the remote diagnosis system which could provide the fast and accurate solution to customerin case of failure Reversing alarm could make the driving safer. |
|
| Voltage | 24 V |
| Battery | 2*12 V |
| Battery capacity | 2*120 Ah |
| Capacity of cold startup | 850 A |
| Reserve capacity | 230 min |
| Grade of AC generator | 1960 W / 70 A |
| Output of starter motor | 7.5 kW |
| Performance Parameters | |
| Description | |
| Tilting load is calculated at the condition with bucket capacity at 1.7 m³and operating weight at 10300kg. | |
| Tipping load-straight according to ISO 14397-1:2007 | 8600 kg |
| Tipping load-full turn according to ISO 14397-1:2007 | 7377 kg |
| Breakout force | >100 kN |
| A Pivot height at max. lifting height | 3683 mm |
| B Unloading height | 2850 mm |
| C Unloading height at max. lifting height | 1000 mm |
| D Digging depth | 35 mm |
| S1 Max. bucket-withdrawing angle on the | ground 45° |
| S2 Max. bucket-withdrawingangle at transporting position | 48° |
| S3 Max. bucket-withdrawing angle at max. lifting height | 65° |
| S4 Unloading angle | 46° |
| Dimensions | |
| E - Ground clearance | 360 mm |
| G - Wheelbase | 2750 mm |
| H - Cab height | 3200 mm |
| J - Wheel track | 1865 mm |
| K - Outside width of tire | 2310 mm |
| L - Overall length (with the attachments) | 7040 mm |
| M - Steering angle, at any side | 35° |
| P - Departure angle | 32° |
| R1 - Min. Turning radius with bucket at transporting position | 6040 mm |
| R2 - Turning radius, at outside of tire | 5516 mm |
| Tire | ||||||||
| Proper tires for your machine will become the key competitive edge of excellent performance. Through closely and jointly development and cooperation with wel-known supplier which is carefully selected, we could provide thefullseries tires specillycustomized for wheeled loader. | ||||||||
| # | Application | Mode | Sizes | PR/* | Tube Type | Width | Overall Diameter mm |
Loading Capacity 50km/h~10km/h |
| L2 | - At site with good traction - For example, on slope with smooth gradeability - Work at soft and muddy site without sharp rocks. - Inall loading/transporting conditions |
 L2 Tire TL Tube |
17.5-25 | 8 | TL | 445mm | 1, 350 | 2800/4750kg |
| 17.5-25 | 12 | TL | 445mm | 1, 350 | 3650/6150kg | |||
| L3 | - Work in sandy conditions - In all types of loading/carrying operations - Unlike L2, L3 tread is narrow and less self-cleaning effect. |
 L3 Tire TL Tube |
17.5-25 | 16 | TL | 445mm | 1, 350 | 4250/7300kg |
| 17.5-25 | 20 | TL | 445mm | 1, 350 | 5000/8250kg | |||
 L3 Tire TL Tube |
17.5R25 | * | TL | 445mm | 1, 350 | 4125/7100kg | ||
| 17.5R25 | ** | TL | 445mm | 1, 350 | 5450/8500kg | |||
| Note: Radial tire hasits load-bearing capacity represented with stars*.The more stars means the radial tire has more load-bearing capacity. The special radial tire dimensions listed in table 2 stars (**) means the max. load-bearing capacity of radial tire. | ||||||||
| Parameters of Work Equipments | ||||||
| Item | Rock Bucket |
Coal Bucket |
High-Position Unloading | Unit | ||
| Regular Bucket |
Coal Bucket |
Enlarged Bucket |
||||
| Bucket capacity | 1.3 | 2 | 1.7 | 2 | 2.5 | m³ |
| Rated load | 3000 | 3000 | 3000 | 3000 | 3000 | kg |
| Complete vehicle weight | 10250 | 10320 | 10400 | 10440 | 10520 | kg |
| Unloading height | 2900 | 2775 | 3200 | 3125 | 3090 | mm |
| Unloading distance | 1010 | 1070 | 1080 | 1150 | 1400 | mm |
| Overall length | 6795 | 7150 | 7440 | 7550 | 7600 | mm |
| Min. Seering Radius (edge of bucket) |
5900 | 6080 | 6220 | 6260 | 6320 | mm |
| The product structures and parameters may alter with the technology updating, without any notice in advance.If sample differsfrom the actual product, the latter prevails | ||||||
| Standard Configurations | ||
| Engine | Steering system | Instrument |
| Weichai WP6, Tier2 Engine output power 92KW(125hp), six cylinders, water cooling, four strokes and direct injection. Pre-filtration of oil-water separator Fuel filter Direct-drive fan |
Full-hydraulic coaxial flow-amplification steering system and steering-prevailing | Engine coolant temperature Transmission oil temperature Fuel level meter Timer Voltage Brake pressure Charging of battery Steering lamp Transmission oil pressure alarm High-beam indicator |
| Drive | Tire | Cab |
| Shantui Axis-fixed drive transmission Startup function, forward four gears, neutral gearand backward two gears Transmission oil level detector Secondary oil filter, oilbar Remote pressure switch for diagnosis |
17.5-25/L3 diagonal tire Regular mudguard |
Seat Dual-direction adjustable steering column Large-arc window Rubber cushion Two sides of rearview mirror Heater One cup holder Sunvisor |
| Drive Axle | Frame Assembly | Others |
| Feicheng Yunyu 30 Axle Air-against-oil brake system Auxiliary parking brake |
Spacious intermediate articulation Joint bearing Articulated locking lever Draw bar |
On-board tools and attachments |
| Hydraulic System | Electrical System | |
| Cable control | Two headlights, low beam/high beam On the top of cab, there are two headlights. Battery, maintenance-free 24Vpower socket Electric horn Wiper of windshield Radio/player with USB port Reversing warning lamp |
|
| Optional Configurations | ||
| Engine | Cab | Attachments |
| Cold startup device Oil-bathed dual-layer air filter |
Luxury seat | Timber-holding type, grass-holding type |
| Hydraulic System | Electrical System | Others |
| Pilot controls (Joystick control) | Single cold type/heating/cooling A/C | Automatic central lubrication Automatic weighing device Sub blade |
