RPM supplies customizable-brand Wheel Excavators Series with good prices/performances ratio made by good-reputation manufacturer Since 1993.

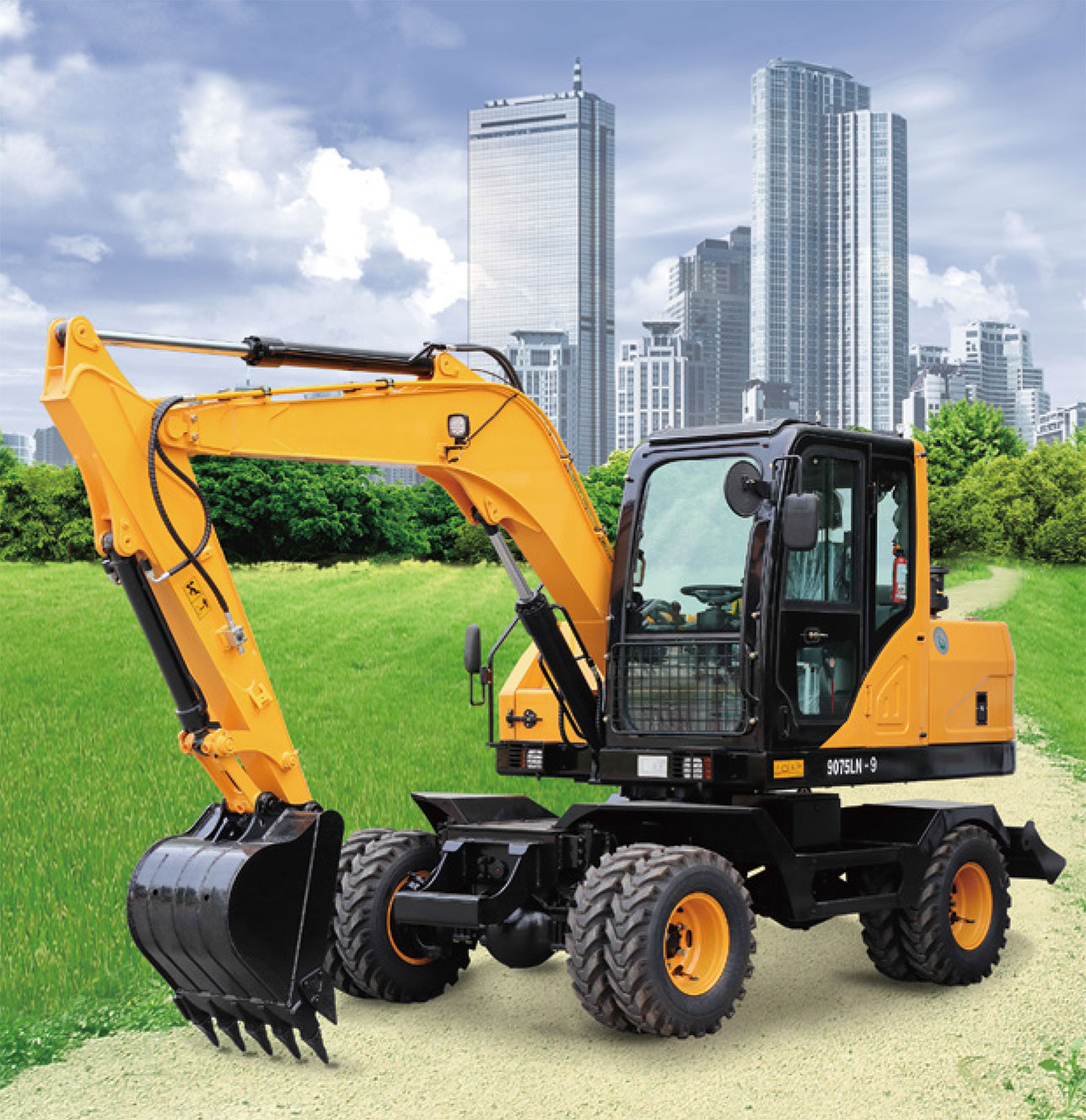

 91 Wheel Excavator Series - |
 92 Wheel Excavator Series Factory |

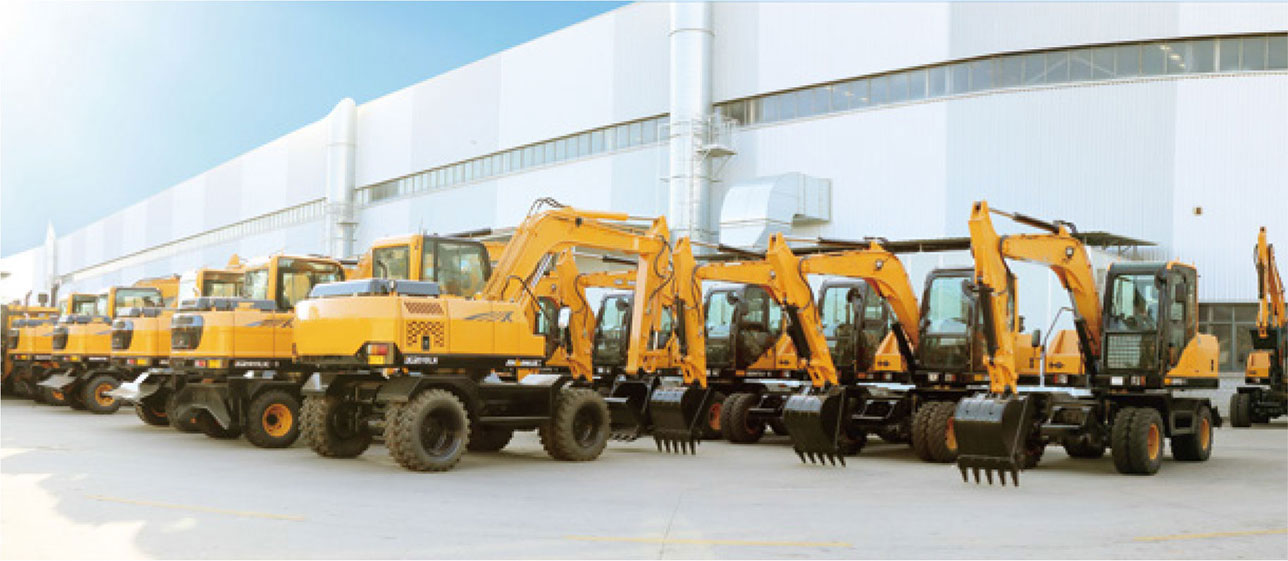

 93 Wheel Excavator Series Factory Finished Product Area |
| Originated in 1979, registered in 1993, the coMPany is headquartered in the key equipment manufacturing base of Fujian Province. It is a large-scale specialized enterprise specializing in the production, manufacturing and sales of wheel loaders, forklifts, excavators and their parts. The component product "Double Variable Assembly" has been rated as "Fujian Famous and Excellent Products" since 1993. The whole machine product has been tested by the National Engineering Machinery Quality Supervision and Inspection Center, and its reliability and other performance indicators have reached the first-class products issued by the Ministry and the advanced level of similar domestic products. The coMPany has always adhered to the concept of "creating value for customers" and gradually established and improved the quality assurance system from design, manufacturing to sales and service. It has a complete and fast service system and parts supply network. The coMPany implements total quality control (TQC) and introduces lean production six sigma management. In 1994, it was rated as a total quality management standard enterprise issued by the Ministry. In 1999 and 2010, it passed ISO9001:2000 and ISO9001:2008 quality management system certification respectively. At the same time, the coMPany passed the environmental management system and occupational health and safety assessment system certification. The coMPany has been certified as the third batch of service-oriented manufacturing demonstration enterprises by the Ministry of Industry and Information Technology of China, and as a green manufacturing-green supply chain management enterprise. The coMPany has always adhered to the business policy of "people-oriented, honesty and quality". The coMPany is a high-tech enterprise, Fujian provincial technology center, and Fujian earthwork machinery enterprise engineering technology research center; the coMPany's series of products have won the "TOP50" award for China's annual engineering machinery products for many consecutive years; at the same time, the forklift was rated as a "single manufacturing champion product" by the Ministry of Industry and Information Technology of China, and many technologies and products won provincial and municipal science and technology progress awards. In 2015, it won the second prize of the China Machinery Industry Science and Technology Award and won the first "Tiangongzun" Cup Top Ten Most Influential Brands in the Engineering Machinery Industry. In 2015, it was selected as a military material procurement supplier. At present, the coMPany's headquarters Fujian manufacturing base and Jiangsu base cover an area of nearly 1,000 acres, with an annual production capacity of 20,000 loaders and 5,000 excavators. The manufacturing, sales and service network radiates to cities in all provinces across the country, and the national strategic layout has been initially completed. The coMPany takes "technological innovation, industrial upgrading, management optimization, and brand leap" as its business policy, and "honesty, teamwork, learning, innovation, hard work, and gratitude" as its core values, accelerating the pace of construction, optimizing industrial layout, and improving governance structure. The coMPany will continue to uphold the purpose of "customer first, quality first", carefully casting, and creating greater value for the society and customers. |
||
| Wheel Excavator High Reliability, High Stability, Easy Operation Wheeled excavators have outstanding maneuverability, a wide field of vision, and good maneuverability. They are widely used in agriculture, forestry, water conservancy, urban maintenance, new rural construction and other places. |
||

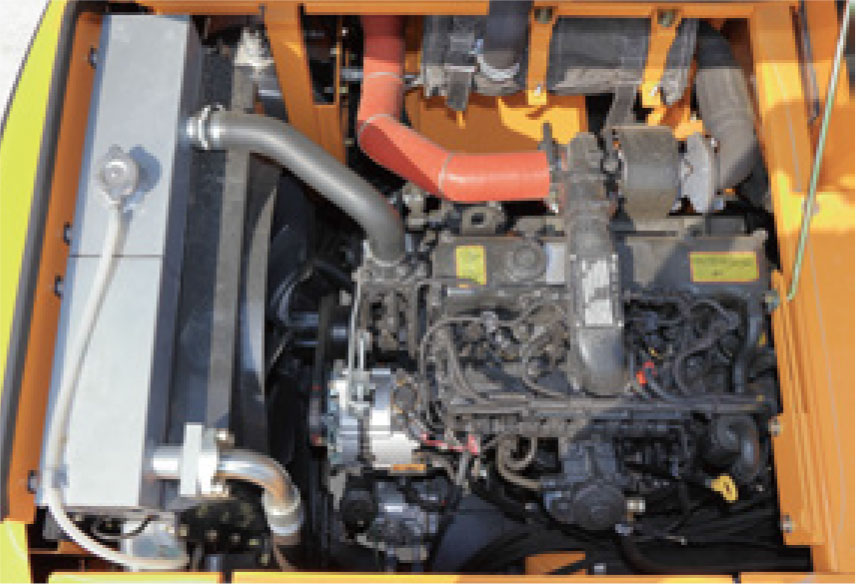

 94 Wheel Excavator Maintenance Hatch a |

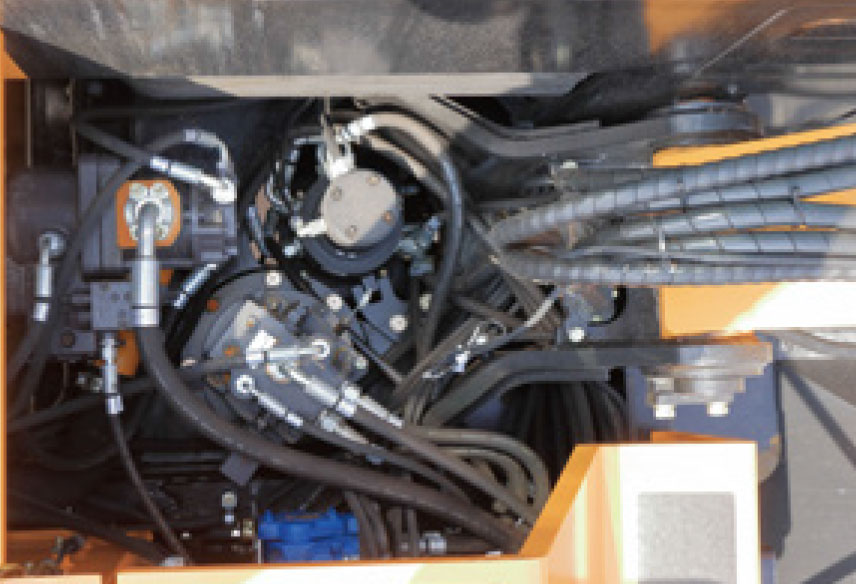

 95 Wheel Excavator Maintenance Hatch b |

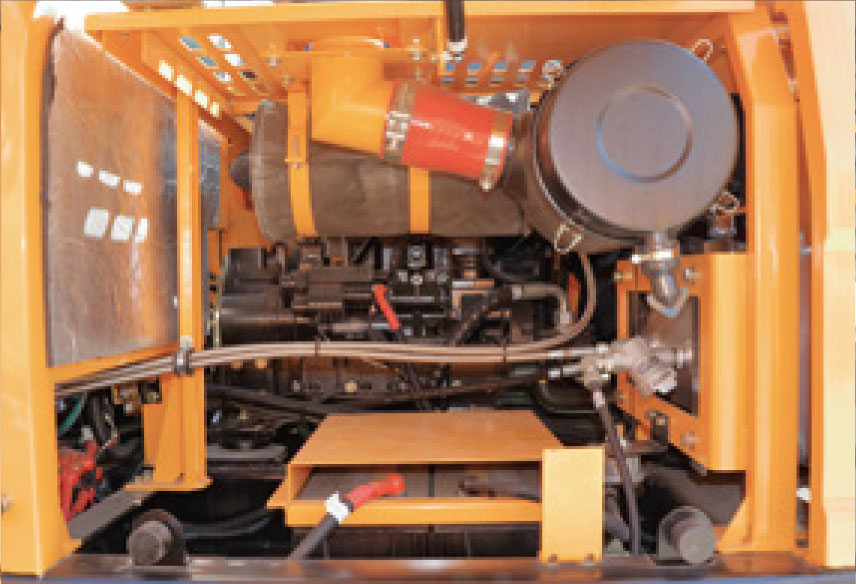

 96 Wheel Excavator Maintenance Hatch c |

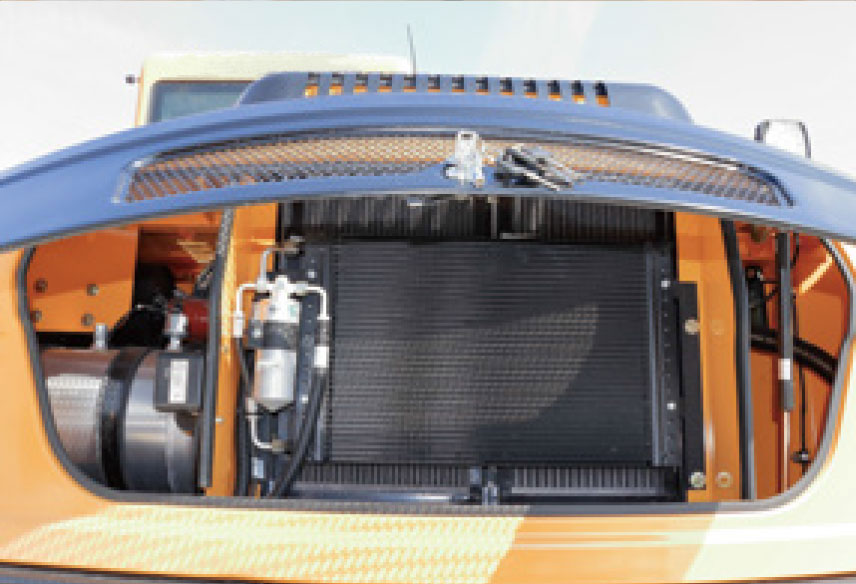

 97 Wheel Excavator Maintenance Hatch d |

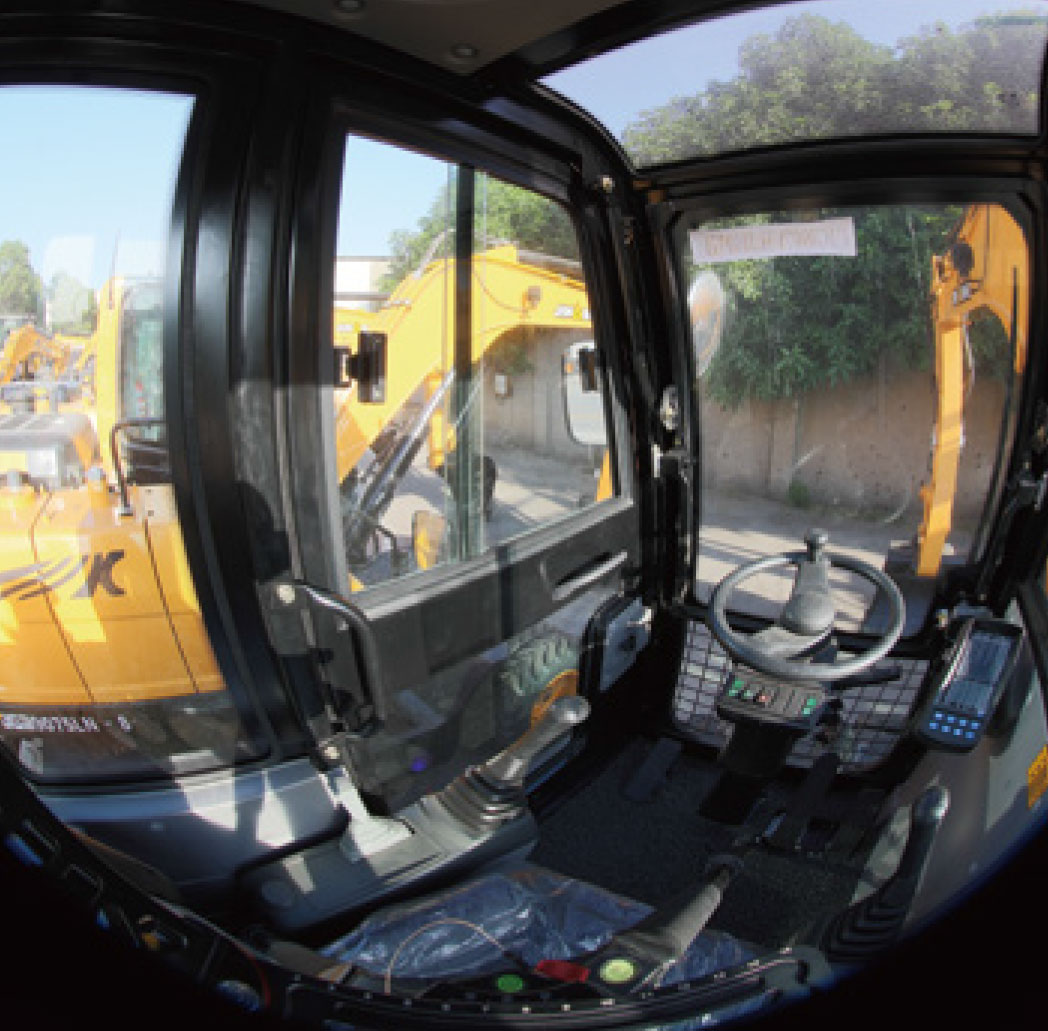

 98 Wheel Excavator Cab - |

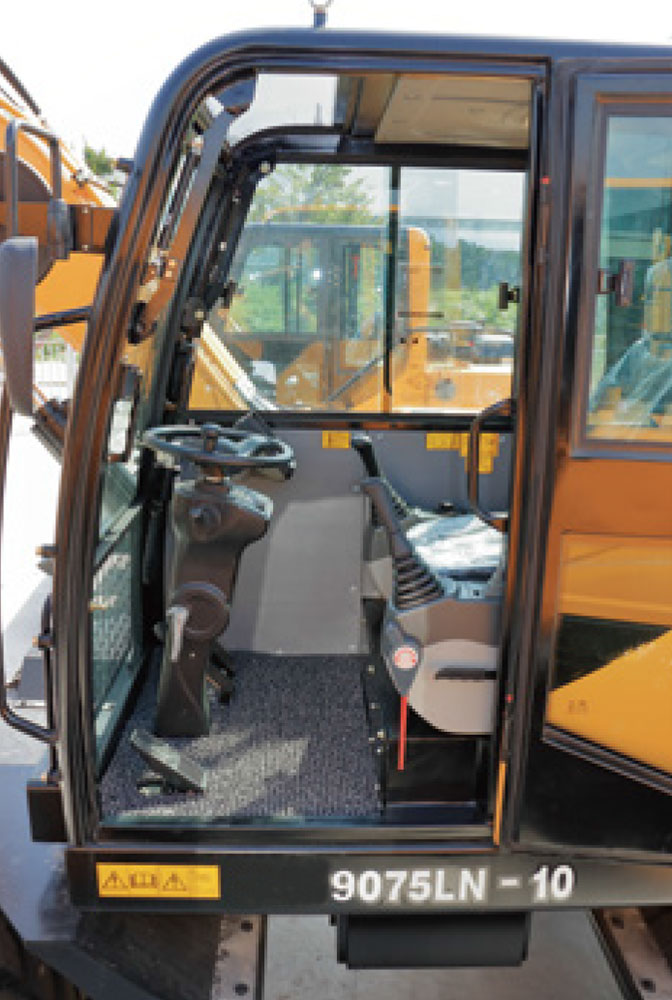

 99 Wheel Excavator Cab - |

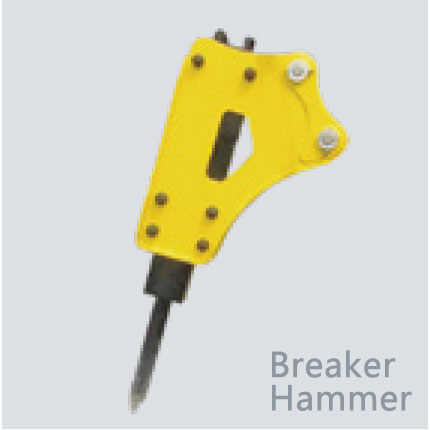

 100 Wheel Excavator Optional Attachment Breaker Hammer |

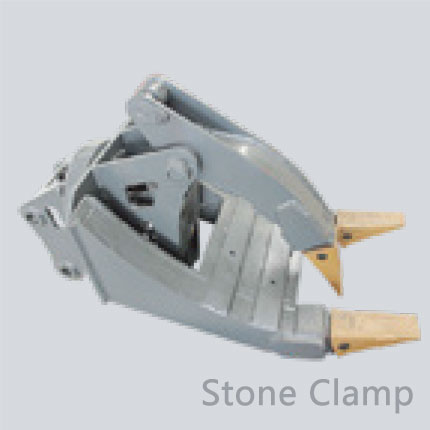

 101 Wheel Excavator Optional Attachment Stone Clamp |

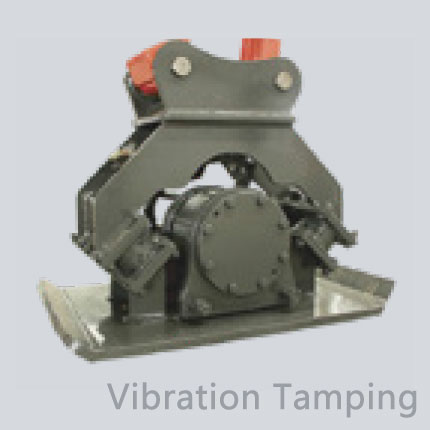

 102 Wheel Excavator Optional Attachment Vibration Tamping |

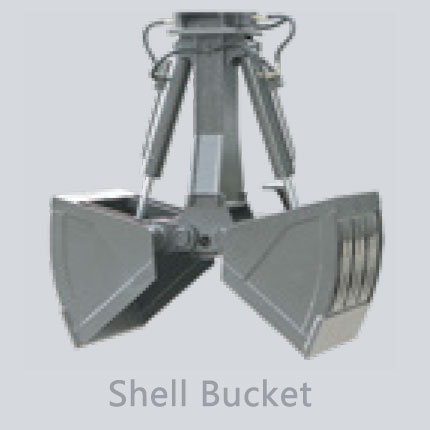

 103 Wheel Excavator Optional Attachment Shell Bucket |
 104 Wheel Excavator Optional Attachment Lotus Claw |

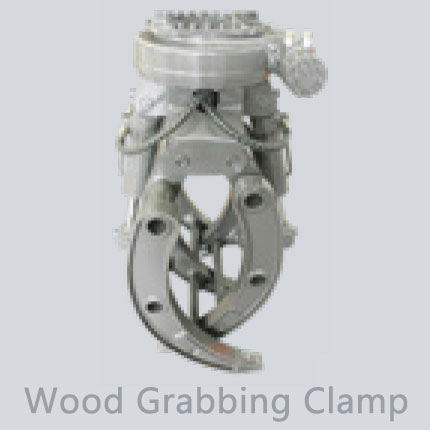

 105 Wheel Excavator Optional Attachment Wood Grabbing Clamp |

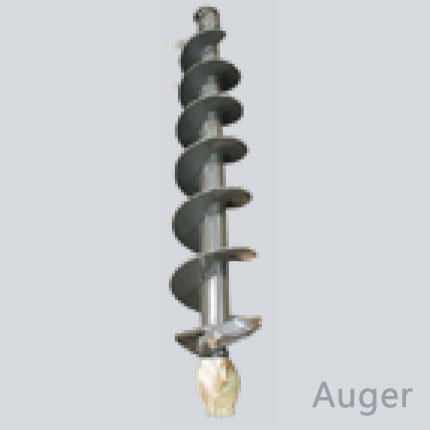

 106 Wheel Excavator Optional Attachment Auger |

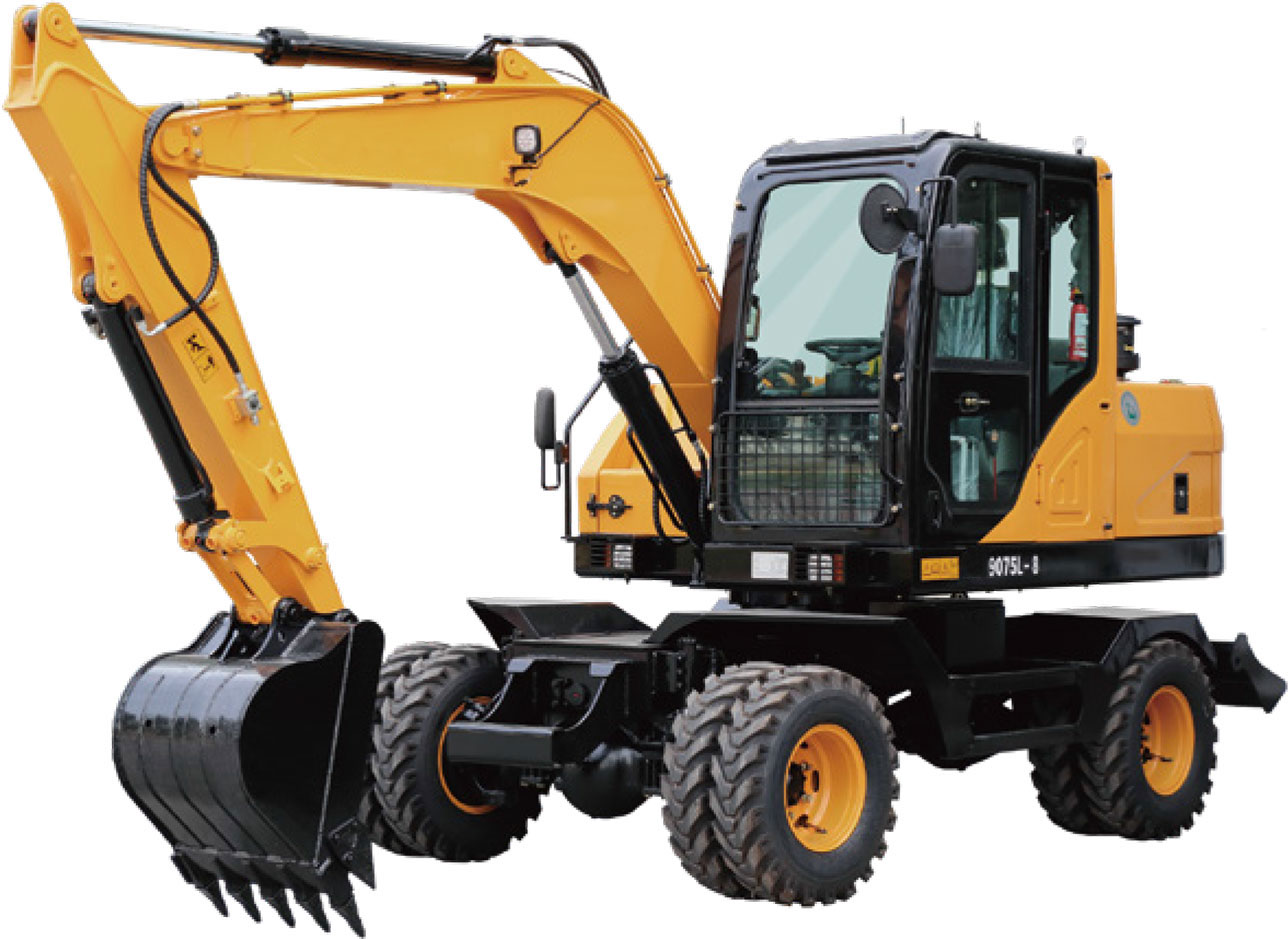

 107 Wheel Excavator 9075L-8 - |

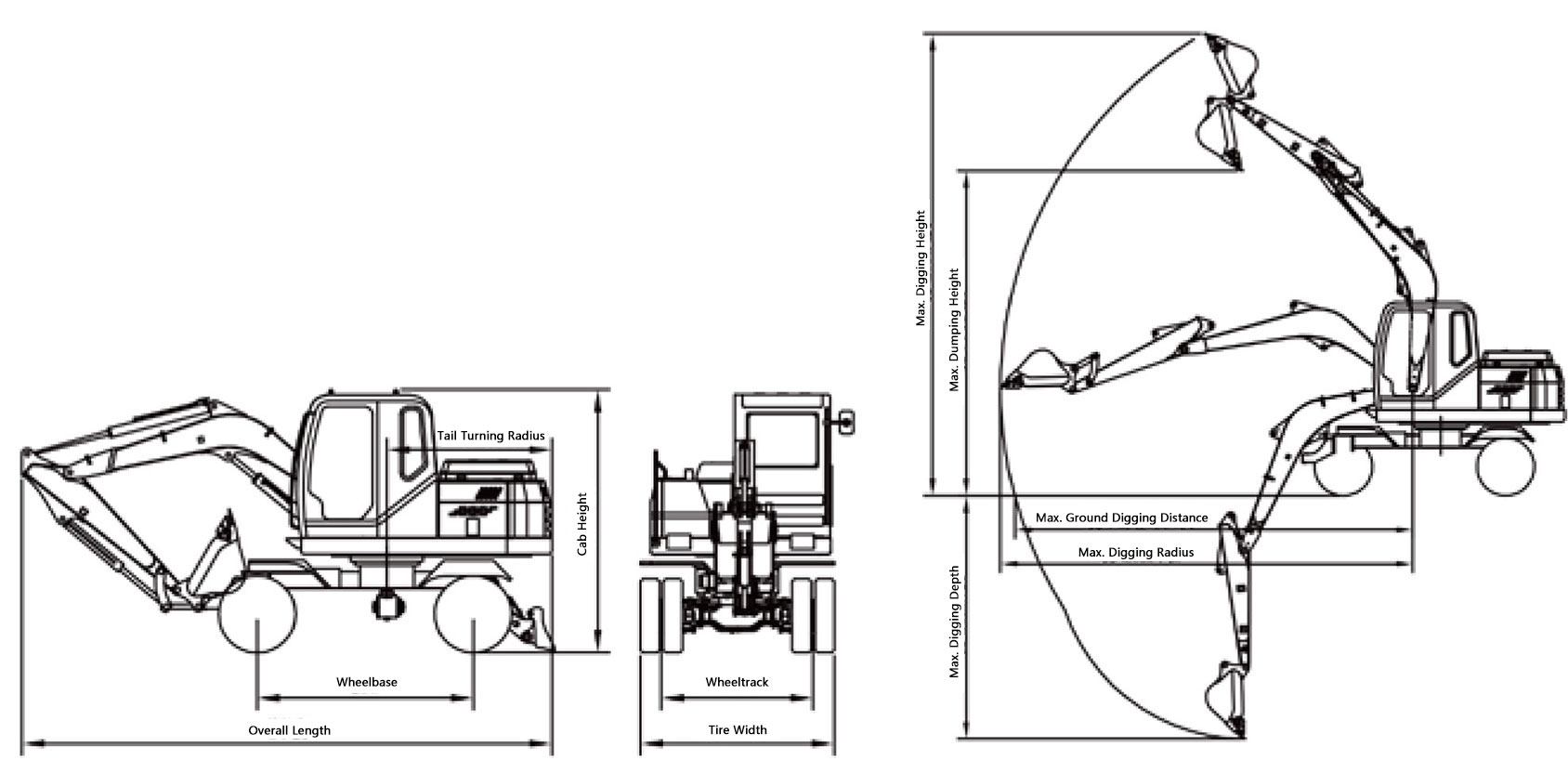

 108 Wheel Excavator 9075L-8 Drawings |
| Main Specifications | ||
| Description | Main Parameter | Unit |
| Operating Weight | 6600 | kg |
| Bucket Capacity | 0.3 | m³ |
| Overall Length (In Transportation) | 6172 | mm |
| Width of Tyre | 2140 | mm |
| Height of Driver's Cabin Top | 2885 | mm |
| Engine Power/Rotate Speed | 48/2200 | kW/r/min |
| Engine Displacement | 3.168 | L |
| Max. Engine Torque | 250 | N.m |
| Travel Speed | 0-30 | km/h |
| Max.Digging Force of Bucket | 38 | kN |
| Climbing Ability | 30 | ° |
| Swing Speed | 11 | rpm |
| Min. Ground Clearance | 340 | mm |
| Tail End Swing Radius | 1820 | mm |
| Wheelbase | 2380 | mm |
| Wheeltrack | 1670 | mm |
| Max. Digging Height | 6790 | mm |
| Max. Digging Depth | 3550 | mm |
| Max. Digging Radius | 6460 | mm |
| Max. Unloading Height | 4790 | mm |
| Max. Ground Excavation Distance | 6240 | mm |
| Max. Soil Depth | 220 | mm |
| Max. Soil Height | 560 | mm |
| Boom Length | 3400 | mm |
| Bucket Rod Length | 1750 | mm |
| Blade Width | 2200 | mm |
| Tire Specifications | 8.25-16 | — |
| Fuel Tank Capacity | 120 | L |
| Hydraulic Oil Tank Capacity | 140 | L |
| As technology advances, product structure and parameters will be continuously improved without prior notice. If there is a slight discrepancy between the sample information and the actual product, the actual product shall prevail. | ||
| Product Parameters of Deformation Working Devices | |
| Standard Bucket | Fixed Width Bucket |
| 700mm | 340～1100mm |
| Auger | |
| Max. Output Torque | 6930N |
| Pressure Range of Attachments | 80~260bar |
| Flow Range | 50~110L/min |
| Driving Head Weight | 125kg |
| Attachment Weight | 115kg |
| Diameter of Auger Rod | φ150~990mm |
| Breaking Hammer | |
| Work Flow | 36～65L/min |
| Overflow Pressure | 160kg/cm² |
| Working Pressure | 110～160kg/cm² |
| Working Frequency | 500～800bpm |
| Drill Rod Diameter | φ75mm |
| Crushing Hammer Weight | 260kg |
| Vibratory Rammer | |
| Tampingplate Size | 900*550*25mm |
| Workflow | 36～65L/min |
| Working Pressure | 110～140kg/cm² |
| Hitting Power | 40kN |

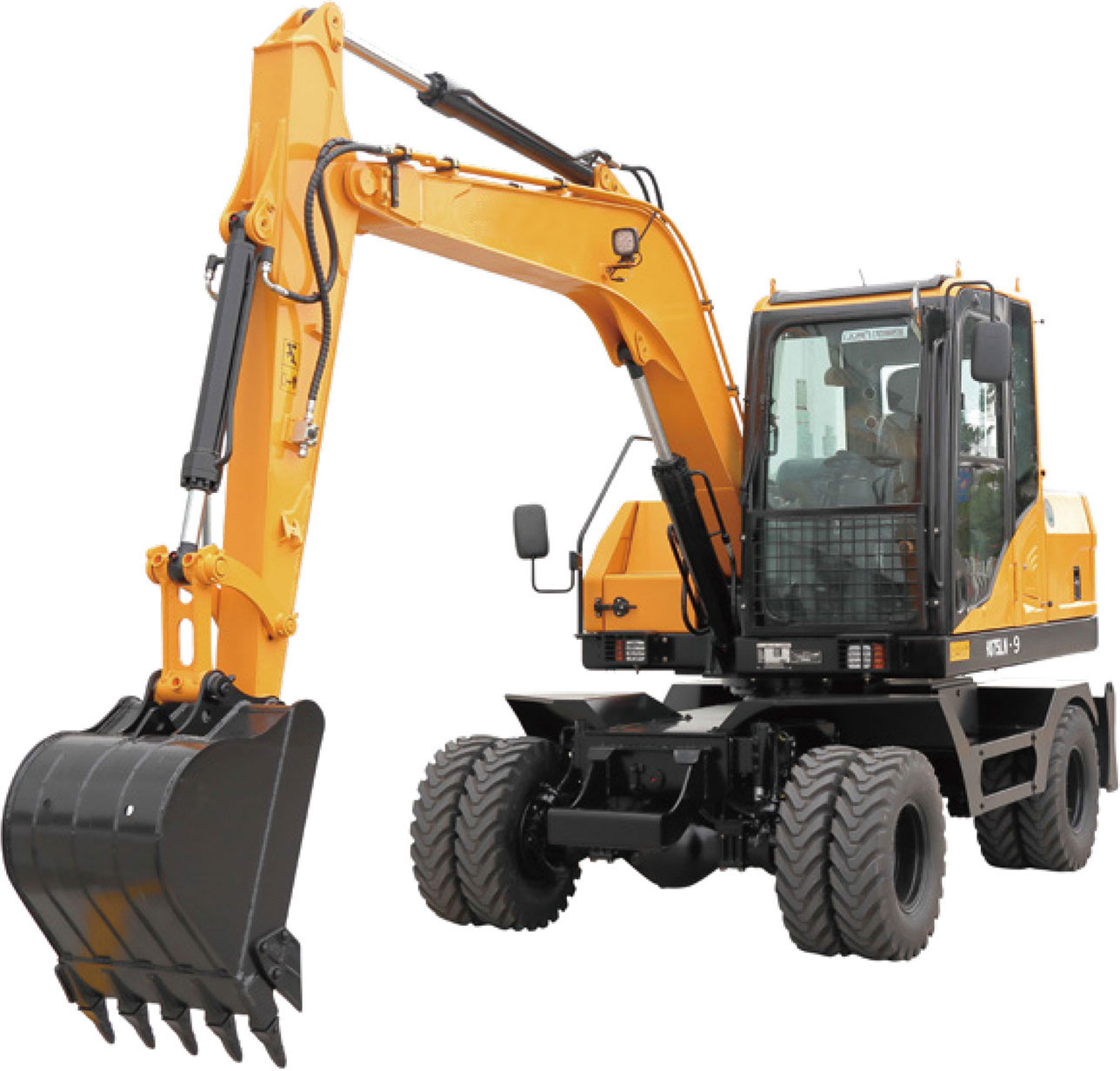

 109 Wheel Excavator 9075LN-9 |
Wheel Excavator 9075L-9 Drawings |
| Main Specifications | ||
| Description | Main Parameter | Unit |
| Operating Weight | 6800 | kg |
| Bucket Capacity | 0.3 | m³ |
| Overall Length (In Transportation) | 6363 | mm |
| Width of Tyre | 2140 | mm |
| Height of Driver's Cabin Top | 2885 | mm |
| Engine Power | 55/2200 | kW/r/min |
| Engine Displacement | 3.621 | L |
| Max. Engine Torque | 315 | N.m |
| Travel Speed | 0-30 | km/h |
| Max. Digging Force of Bucket | 40 | kN |
| Climbing Ability | 30 | ° |
| Swing Speed | 11 | rpm |
| Min. Ground Clearance | 340 | mm |
| Tail End Swing Radius | 2040 | mm |
| Wheelbase | 2380 | mm |
| Wheeltrack | 1670 | mm |
| Max. Digging Height | 6790 | mm |
| Max. Digging Depth | 3550 | mm |
| Max. Digging Radius | 6460 | mm |
| Max. Unloading Height | 4790 | mm |
| Max. Ground Excavation Distance | 6240 | mm |
| Max. Soil Depth | 220 | mm |
| Max. Soil Height | 560 | mm |
| Boom Length | 3400 | mm |
| Bucket Rod Length | 1750 | mm |
| Blade Width | 2200 | mm |
| Tire Specifications | 8.25-16 | - |
| Fuel Tank Capacity | 140 | L |
| Hydraulic Oil Tank Capacity | 140 | L |
| As technology advances, product structure and parameters will be continuously improved without prior notice. If there is a slight discrepancy between the sample information and the actual product, the actual product shall prevail. | ||
| Product Parameters of Deformation Working Devices | |
| Standard Bucket | Fixed Width Bucket |
| 700mm | 340～1100mm |
| Auger | |
| Max. Output Torque | 6930N. m |
| Pressure Range of Attachments | 80～260bar |
| Flow Range | 50～110L/min |
| Driving Head Weight | 125kg |
| Attachment Weight | 115kg |
| Diameter of Spiral Drill Pipe | φ150～900mm |
| Breaking Hammer | |
| Workflow | 36～65L/min |
| Overflow Pressure | 160kg/cm² |
| Working Pressure | 110～160kg/cm² |
| Working Frequency | 500～800bpm |
| Drill Fod Diameter | φ75mm |
| Crushing Hammer Weight | 260kg |
| Vibratory Rammer | |
| Tampingplate Size | 900*550*25mm |
| Workflow | 36～65L/min |
| Working Pressure | 110～140kg/cm² |
| Hitting Power | 40kN |

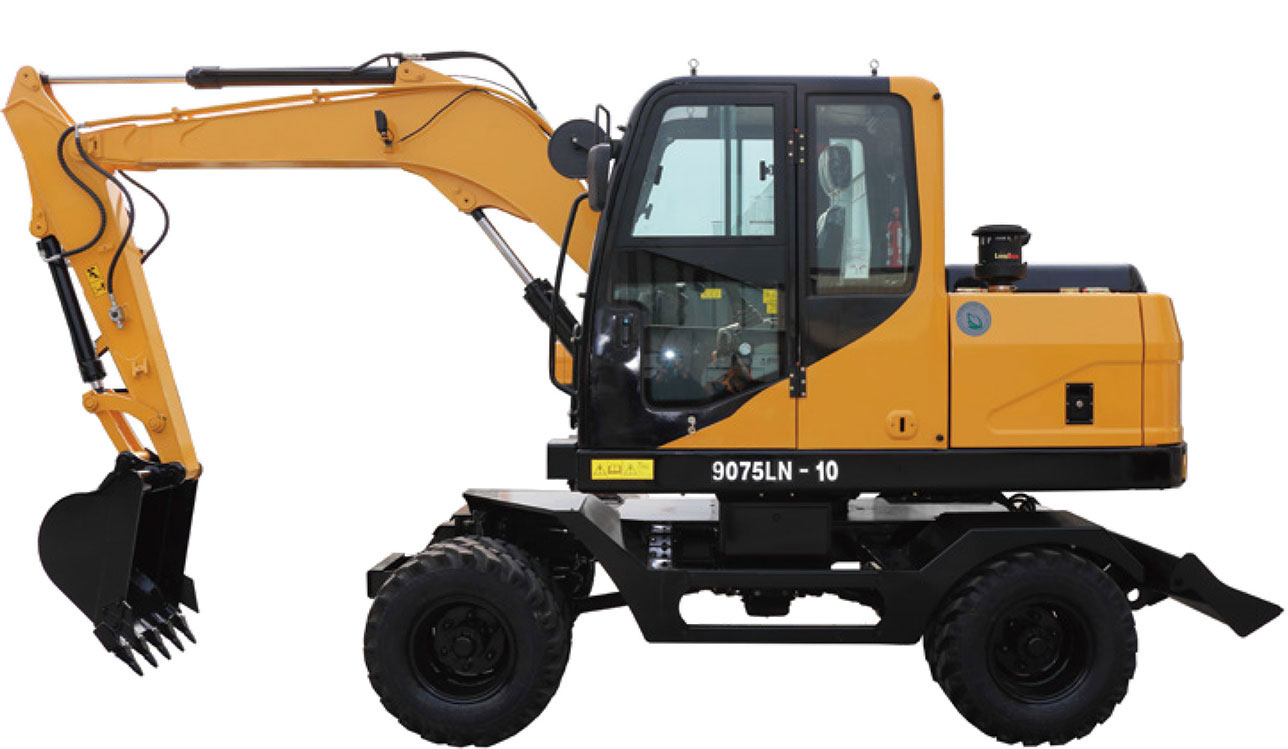

 110 Wheel Excavator 9075LN-10 |
Wheel Excavator 9075L-10 Drawings |
| Description | Main Parameter | Unit |
| Operating Weight | 6780 | kg |
| Bucket Capacity | 0.3 | m³ |
| Overall Length (In Transportation) | 6172 | mm |
| Width of Tyre | 2140 | mm |
| Height of Driver's Cabin Top | 2885 | mm |
| Engine Power | 48/2200 | kW/r/min |
| Engine Displacement | 2.982 | L |
| Max. Engine Torque | 260 | N. m |
| Travel Speed | 0-33 | km/h |
| Max. Digging Force Of Bucket | 40 | kN |
| Climbing Ability | 30 | ° |
| Swing Speed | 11 | rpm |
| Min. Ground Clearance | 320 | mm |
| Tail End Swing Radius | 1820 | mm |
| Wheelbase | 2380 | mm |
| Wheeltrack | 1670 | mm |
| Max. Digging Height | 6790 | mm |
| Max. Digging Depth | 3550 | mm |
| Max. Digging Radius | 6460 | mm |
| Max. Unloading Height | 4790 | mm |
| Max. Ground Excavation Distance | 6240 | mm |
| Max. Soil Depth | 220 | mm |
| Max. Soil Height | 560 | mm |
| Boom Length | 3400 | mm |
| Bucket Rod Length | 1750 | mm |
| Blade Width | 2200 | mm |
| Tire Specifications | 8.25-16 | — |
| Fuel Tank Capacity | 120 | L |
| Hydraulic Oil Tank Capacity | 140 | L |
| Product Parameters of Deformation Working Devices | |
| Standard Bucket | Fixed Width Bucket |
| 700mm | 340～1100mm |
| Auger | |
| Max. Output Torque | 6930N. m |
| Attachment Pressures Range | 80～260bar |
| Flow Range | 50～110L/min |
| Driving Head Weight | 125kg |
| Attachment Weight | 115kg |
| Diameter of Spiral Drill Rod | φ150～900mm |
| Breaking Hammer | |
| Workflow | 36～65L/min |
| Overflow Pressure | 160kg/cm² |
| Working Pressure | 110～160kg/cm² |
| Working Frequency | 500～800bpm |
| Drill Rod Diameter | φ75mm |
| Crushing Hammer Weight | 260kg |
| Vibratory Rammer | |
| Tampingplate Sizes | 900*550*25mm |
| Workflow | 36～65L/min |
| Working Pressure | 110～140kg/cm² |
| Hitting Force | 40kN |

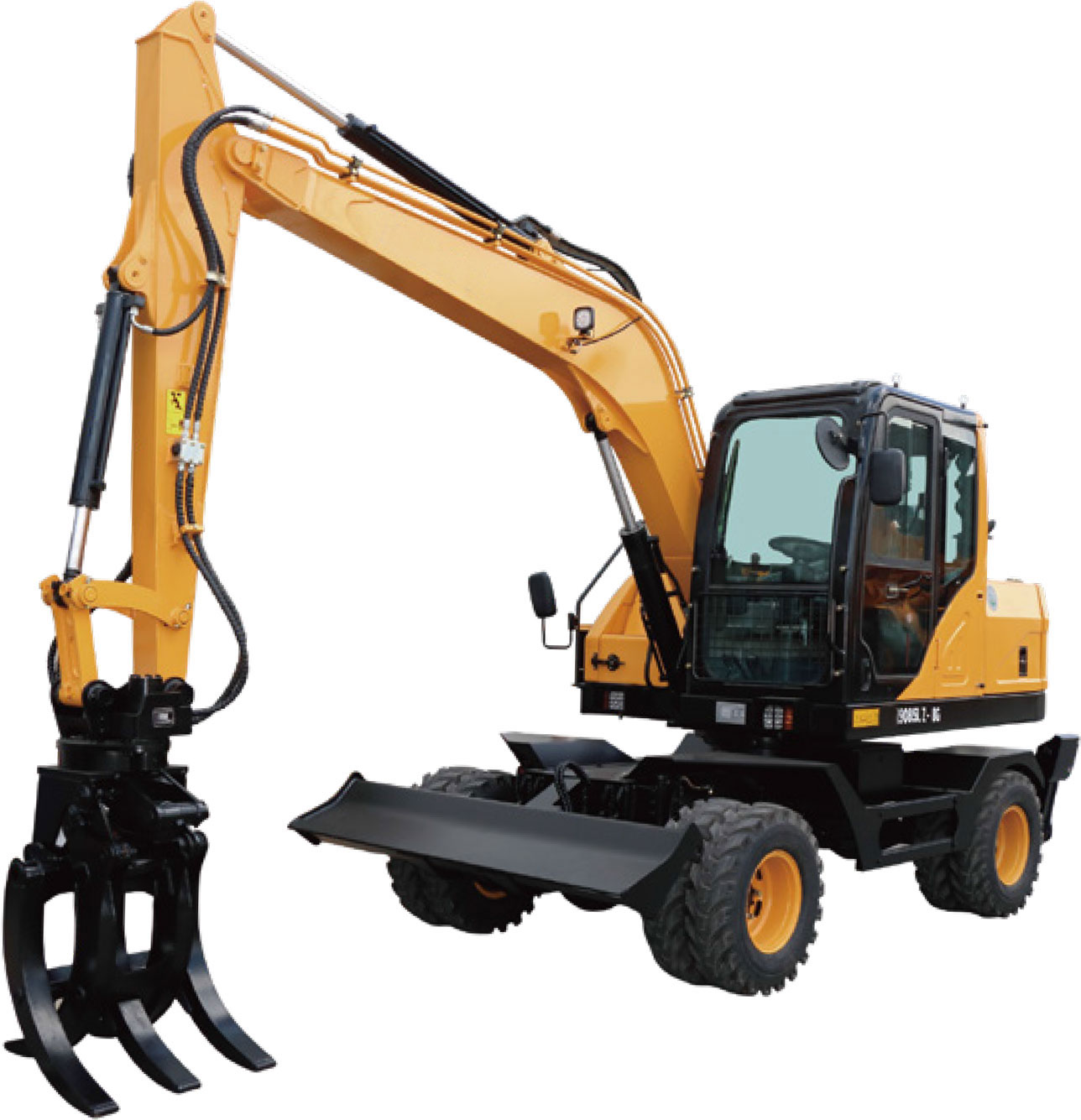

 111 Wheel Excavator 9085LZ-8 |
 112 Wheel Excavator 9085LZ-8 Drawings |
| Main Specifications | ||
| Description | Main Parameter | Unit |
| Operating Weight | 7340 | kg |
| Grip Width | 1330 | mm |
| Max. Lifting Weight | 1000 | kg |
| Overall Length (In Transportation) | 6172 | mm |
| Width of Tyre | 2140 | mm |
| Height of Driver's Cabin Top | 2910 | mm |
| Engine Power/Rotate Speed | 48/2300 | kW/r/min |
| Engine Displacement | 3.17 | L |
| Max. Engine Torque | 250 | N.m |
| Travel Speed | 0-30 | km/h |
| Climbing Ability | 30 | ° |
| Swing Speed | 11 | rpm |
| Min. Ground Clearance | 340 | mm |
| Tail End Swing Radius | 1820 | mm |
| Wheelbase | 2380 | mm |
| Wheeltrack | 1670 | mm |
| Max. Lifting Height | 7070 | mm |
| Max. Hoisting Depth | 3770 | mm |
| Max. Hoisting Radius | 6690 | mm |
| Max. Unloading Height | 4540 | mm |
| Max. Ground Hoisting Distance | 6440 | mm |
| Max. Soil Depth | 220 | mm |
| Max. Soil Height | 560 | mm |
| Boom Length | 3400 | mm |
| Bucket Rod Length | 1750 | mm |
| Blade Width | 2200 | mm |
| Tire Specifications | 8.25-1.6 | - |
| Fuel Tank Capacity | 120 | L |
| Hydraulic Oil Tank Capacity | 140 | L |
| As technology advances, product structure and parameters will be continuously improved without prior notice. If there is a slight discrepancy between the sample information and the actual product, the actual product shall prevail. | ||
| Product Parameters of Deformation Working Devices | |
| Standard Bucket | Fixed Width Bucket |
| 700mm | 340~1100mm |
| Auger | |
| Max. Output Torque | 6930N |
| Pressure Range of Attachments | 80~260bar |
| Flow Range | 50~110L/min |
| Driving Head Weight | 125kg |
| Attachment Weight | 115kg |
| Diameter of Auger Rod | φ150~900mm |
| Breaking Hammer | |
| Workflow | 36~65L/min |
| Overflow Pressure | 160kg/cm² |
| Working Pressure | 110~160kg/cm² |
| Working Frequency | 500~800bpm |
| Drill Rod Diameter | φ75mm |
| Crushing Hammer Weight | 260kg |
| Vibratory Rammer | |
| Tampingplate Sizes | 900*550*25mm |
| Workflow | 36～65L/min |
| Working Pressure | 110～140kg/cm² |
| Hitting Force | 40kN |
| Lotus Claw | |
| Outline Sizes | φ1240*1170mm |
| Max. Opening | 1200mm |
| Cylinder Working Pressure | 19MPa |
| Attachment Weight | 600kg |
| Shell Bucket | |
| Outline Sizes | 915*870*1255mm |
| Max. Opening | 2320mm |
| Cylinder Working Pressure | 19MPa |
| Attachment Weight | 355kg |
| Stone Clip | |
| Outline Sizes | 566*612*1300mm |
| Attachment Weight | 360kg |

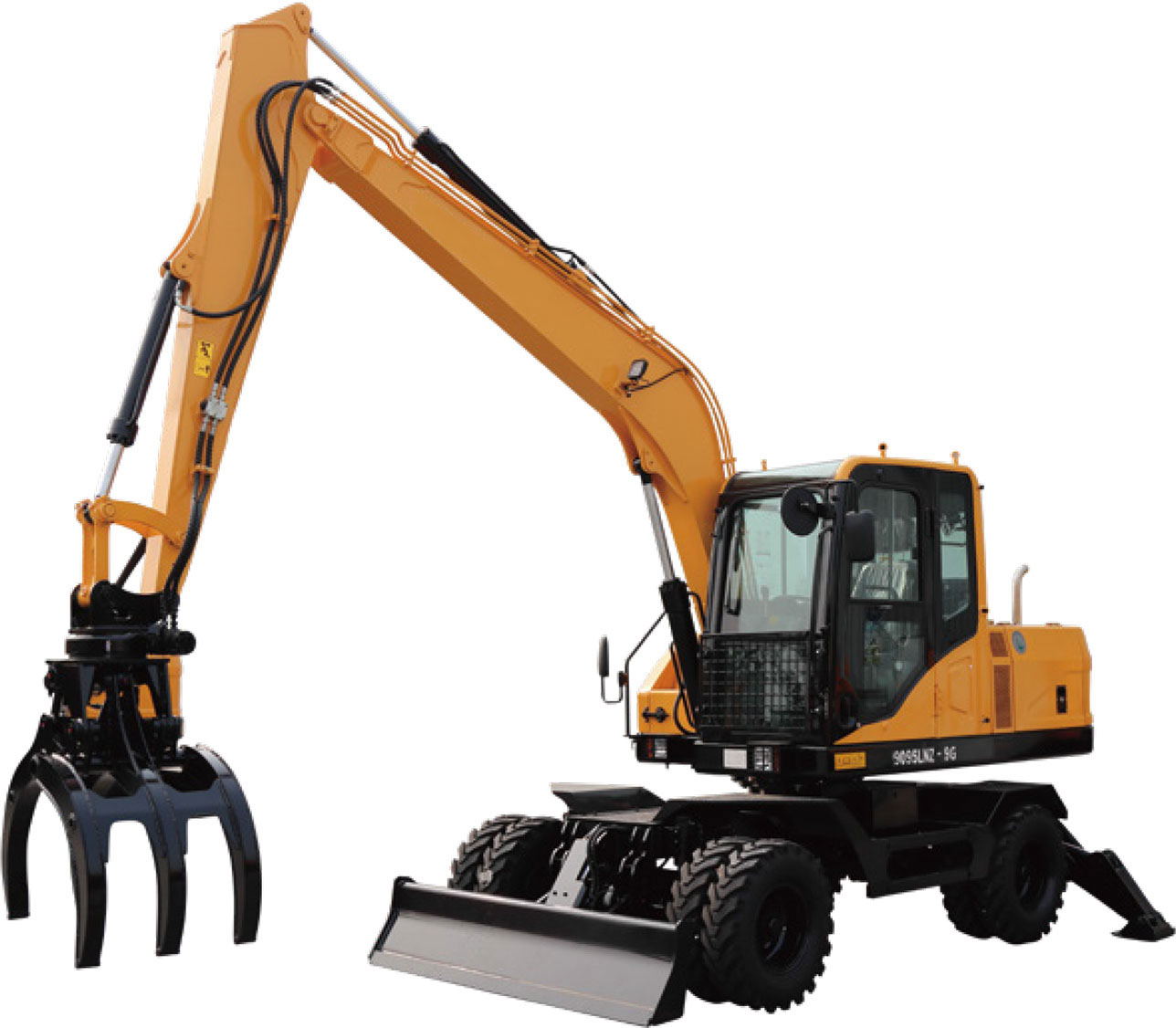

 113 Wheel Excavator 9085LNZ-9G |

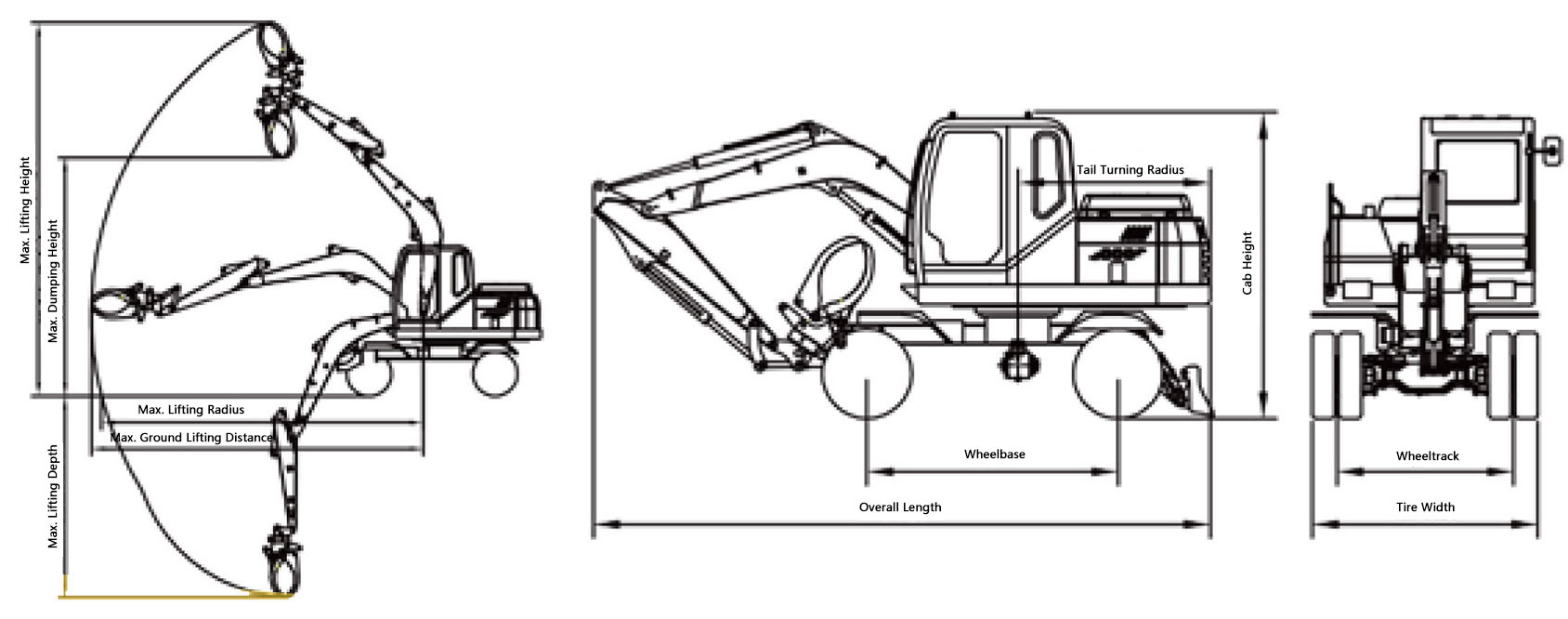

 114 Wheel Excavator 9085LNZ-9G Drawings |
| Main Specifications | ||
| Description | Main Parameter | Unit |
| Operating Weight | 7600 | kg |
| Grip Width | 1330 | mm |
| Max. Lifting Weight | 1000 | kg |
| Overall Length (In Transportation) | 6700 | mm |
| Width of Tyre | 2140 | mm |
| Height of Driver's Cabin Top | 2910 | mm |
| Engine Power/Rotate Speed | 55/2200 | kW/r/min |
| Engine Displacement | 3.621 | L |
| Max. Engine Torque | 315 | N.m |
| Travel Speed | 0-30 | km/h |
| Climbing Ability | 30 | ° |
| Swing Speed | 11 | rpm |
| Min. Ground Clearance | 340 | mm |
| Tail End Swing Radius | 2040 | mm |
| Wheelbase | 2380 | mm |
| Wheeltrack | 1670 | mm |
| Max. Lifting Height | 7600 | mm |
| Max. Hoisting Depth | 4120 | mm |
| Max. Hoisting Radius | 7190 | mm |
| Max. Unloading Height | 5080 | mm |
| Max. Ground Hoisting Distance | 7010 | mm |
| Max. Soil Depth | 220 | mm |
| Max. Soil Height | 560 | mm |
| Boom Length | 3700 | mm |
| Bucket Rod Length | 2100 | mm |
| Blade Width | 2200 | mm |
| Tire Specifications | 8.25-16 | - |
| Fuel Tank Capacity | 140 | L |
| Hydraulic Oil Tank Capacity | 140 | L |
| Product Parameters of Deformation Working Devices | |
| Standard Bucket | Fixed Width Bucket |
| 700 | 340～1100 |
| Auger | |
| Max. Output Torque | 6930N.m |
| Attachment Pressure Range | 80~260bar |
| Flow Range | 50~110L/min |
| Driving Head Weight | 125kg |
| Attachment Weight | 115kg |
| Diameter of Spiral Drill Rod | φ150~900mm |
| Breaking Hammer | |
| Workflow | 36～65L/min |
| Overflow Pressure | 160kg/cm² |
| Working Pressure | 110～160kg/cm² |
| Working Frequency | 500～800bpm |
| Drill Rod Diameter | φ75mm |
| Crushing Hammer Weight | 260kg |
| Vibratory Rammer | |
| Tampingplate Sizes | 900*550*25mm |
| Workflow | 36～65L/min |
| Working Pressure | 110～140kg/cm² |
| Hitting Power | 40kN |
| Lotus Claw | |
| Outline Sizes | φ1240*1170mm |
| Max. Opening | 1200mm |
| Cylinder Working Pressure | 19MPa |
| Attachment Weight | 600kg |
| Shell Bucket | |
| Outline Sizes | 915*870*1255mm |
| Max. Opening | 2320mm |
| Cylinder Working Pressure | 19MPa |
| Attachment Weight | 355kg |
| Stone Clip | |
| Outline Sizes | 566*612*1300mm |
| Attachment Weight | 360kg |

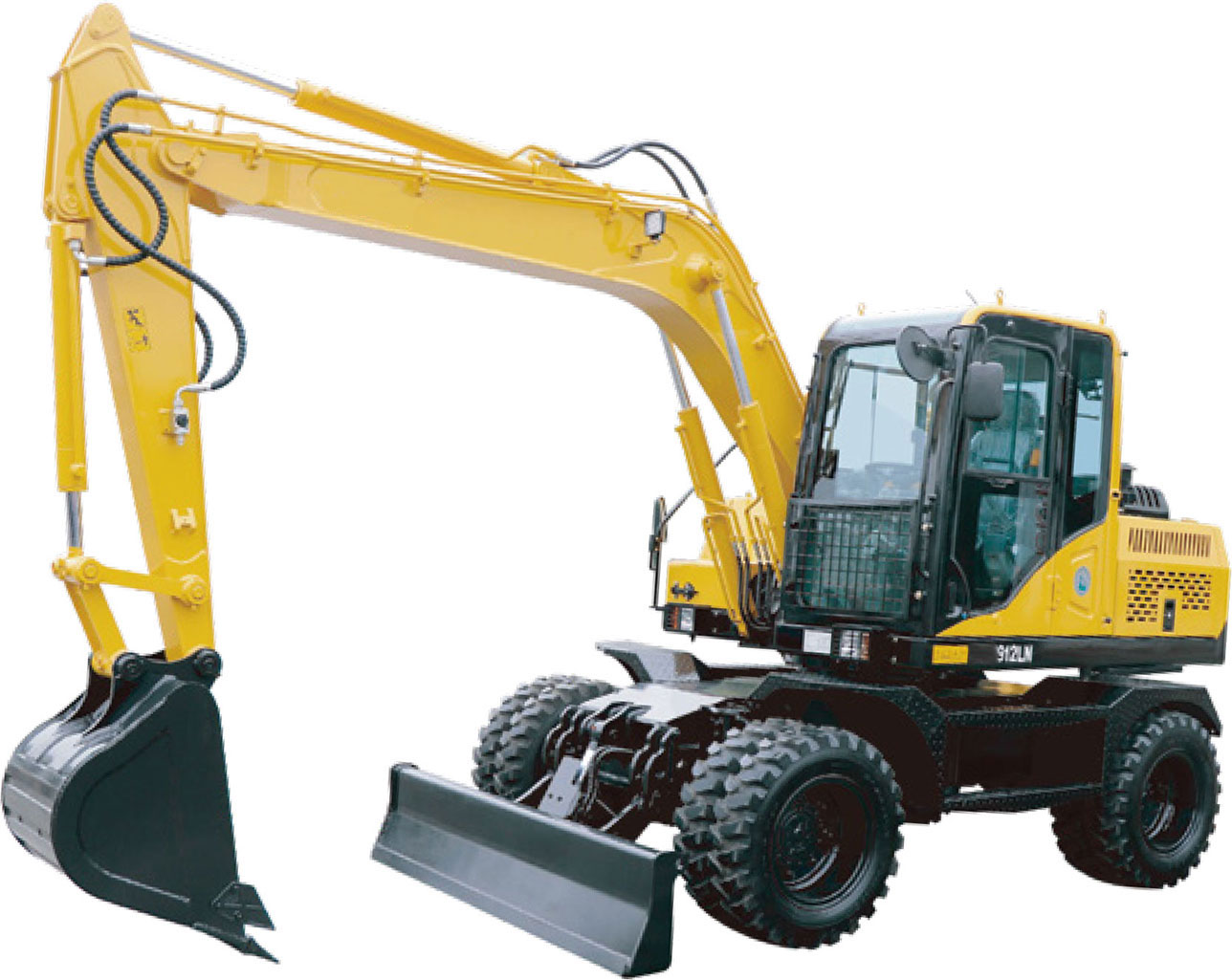

 115 Wheel Excavator 912LN |
Wheel Excavator 912LN Drawings |
| Main Specifications | ||
| Description | Main Parameter | Unit |
| Operating Weight | 9500 | kg |
| Bucket Capacity | 0.4 | m³ |
| Max. Lifting Weight | - | kg |
| Overall Length (In Transportation) | 6823 | mm |
| Width of Tyre | 2286 | mm |
| Height of Driver's Cabin Top | 2970 | mm |
| Engine Power/Rotate Speed | 62.5/2200 | kW/r/min |
| Engine Displacement | 2.982 | L |
| Max.Engine Torque | 340 | N. m |
| Travel Speed | 0-25 | km/h |
| Climbing Ability | 27 | ° |
| Swing Speed | 10 | rpm |
| Min. Ground Clearance | 410 | mm |
| Tail End Swing Radius | 2050 | mm |
| Wheelbase | 2500 | mm |
| Wheeltrack | 1797 | mm |
| Max. Digging Height | 7600 | mm |
| Max. Digging Depth | 4050 | mm |
| Max. Digging Radius | 7090 | mm |
| Max. Unloading Height | 5400 | mm |
| Max. Ground Excavation Distance | - | mm |
| Max. Soil Depth | 180 | mm |
| Max. Soil Height | 580 | mm |
| Boom Length | 4000 | mm |
| Bucket Rod Length | 2100 | mm |
| Blade Width | 2300 | mm |
| Tire Specifications | 8.25-20 | — |
| Fuel Tank Capacity | 125 | L |
| Hydraulic Oil Tank Capacity | 191 | L |
| Product Parameters of Deformation Working Devices | |
| Standard Bucket | Fixed Width Bucket |
| 700mm | 420～1100mm |
| Auger | |
| Max. Output Torque | 7559N. m |
| Attachment Pressures Range | 80～240bar |
| Flow Range | 70～150L/min |
| Driving Head Weight | 138kg |
| Attachment Weight | 126kg |
| Diameter of Spiral Drill Rod | φ150～900mm |
| Breaking Hammer | |
| Workflow | 45～85L/min |
| Overflow Pressure | 160kg/cm² |
| Working Pressure | 120～160kg/cm² |
| Working Frequency | 400～700bpm |
| Drill Rod Diameter | φ85mm |
| Crushing Hammer Weight | 480kg |
| Vibratory Rammer | |
| Tampingplate Sizes | 900*550*25mm |
| Workflow | 36～65L/min |
| Working Pressure | 110～140kg/cm² |
| Hitting Force | 40kN |

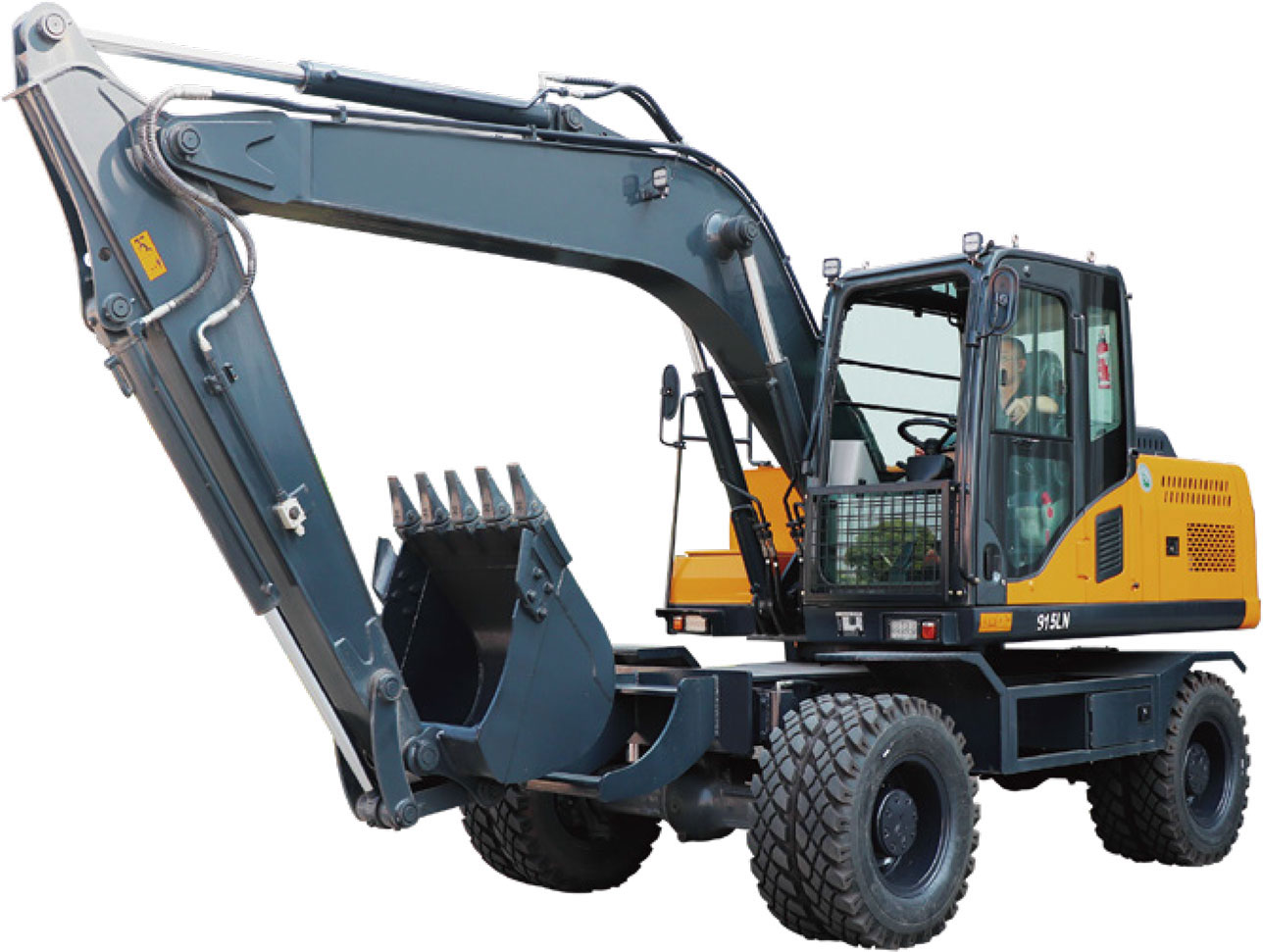

 116 Wheel Excavator 915LN |
Wheel Excavator 915LN Drawings |
| Main Specifications | ||
| Description | Main Parameter | Unit |
| Operating Weight | 13200 | kg |
| Bucket Capacity | 0.2-0.56 | m³ |
| Overall Length (In Transportation) | 6820 | mm |
| Width of Tyre | 2480 | mm |
| Height of Driver's Cabin Top | 3100 | mm |
| Engine Power/Rotate Speed | 92/2200 | kW/r/min |
| Max. Digging Force of Bucket | 87 | kN |
| Climbing Ability | 35 | ° |
| Swing Speed | - | rpm |
| Min. Ground Clearance | 345 | mm |
| Tail End Swing Radius | 2080 | mm |
| Wheelbase | 2650 | mm |
| Wheeltrack | 1950 | mm |
| Max. Digging/Lifting Height | 8400 | mm |
| Max. Digging/Hoisting Depth | 4540 | mm |
| Max. Digging/Hoisting Radius | 8260 | mm |
| Max. Unloading Height | 6280 | mm |
| Max. Soil Depth | - | mm |
| Max. Soil Height | - | mm |
| Boom Length | - | mm |
| Bucket Rod Length | - | mm |
| Blade Width | - | mm |
| Tire Specifications | 9.00-20 | — |
| Fuel Tank Capacity | 221 | L |
| Hydraulic Oil Tank Capacity | 173 | L |
| As technology advances, product structure and parameters will be continuously improved without prior notice. If there is a slight discrepancy between the sample information and the actual product, the actual product shall prevail. | ||

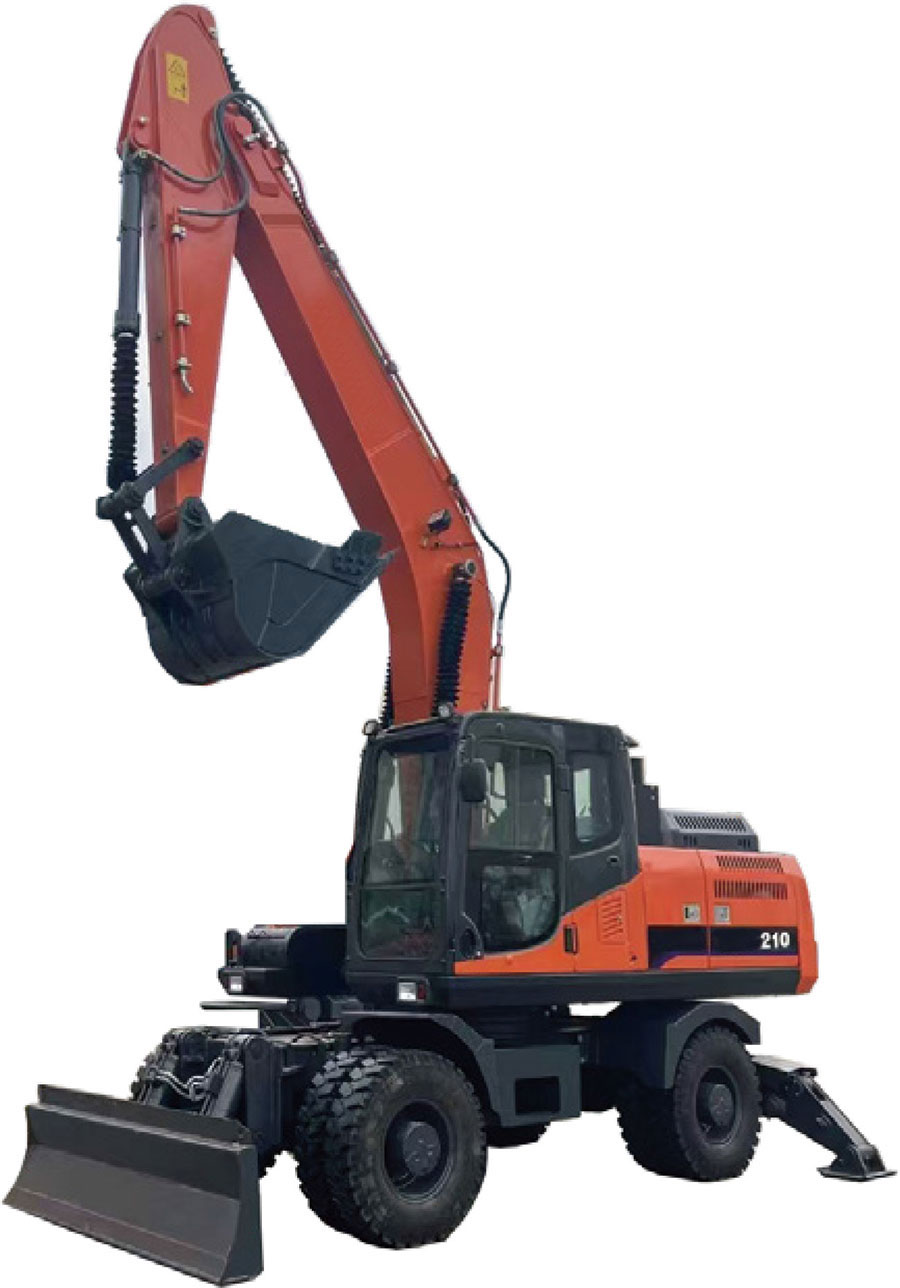

 117 Wheel Excavator 210LN |
Wheel Excavator 210LN Drawings |
| Main Specifications | ||
| Description | Main Parameter | Unit |
| Operating Weight | 21000 | kg |
| Bucket Capacity | 0.86-1 | m³ |
| Overall Length (In Transportation) | 9526 | mm |
| Width of Tyre | 2470 | mm |
| Height of Driver's Cabin Top | 3611 | mm |
| Engine Power/Rotate Speed | 128/2000 | kW/r/min |
| Engine Displacement | - | L |
| Max. Engine Torque | - | N.m |
| Travel Speed | 0-33 | km/h |
| Max. Digging Force of Bucket | 152.1 | kN |
| Climbing Ability | 70 | % |
| Swing Speed | - | rpm |
| Min. Ground Clearance | - | mm |
| Tail End Swing Radius | 2750 | mm |
| Wheelbase | 2451 | mm |
| Wheeltrack | 1875 | mm |
| Max. Digging/Lifting Height | 10370 | mm |
| Max. Digging Depth\Max. Hoisting Depth | 6275 | mm |
| Max. Digging Radius\Max. Hoisting Radius | 10010 | mm |
| Max. Unloading Height | 7430 | mm |
| Boom Length | - | mm |
| Bucket Rod Length | - | mm |
| Blade Width | - | mm |
| Fuel Tank Capacity | 350 | L |
| Hydraulic Oil Tank Capacity | 215 | L |
| Copyright © Xiamen RPM Imp.&Exp. Co.,Ltd. Since 2002 www.construction-machinery.com.cn Sitemap |
| ICP备案序号：闽ICP备13004779号-12 |  |
闽公网安备 35020302035092号 |
