Xiamen RPM Imp.&Exp. Co.,Ltd.



       RPM supplies customizable-brand Eletric Wheel Loader 860E with good prices/performances ratio made by good-reputation manufacturer Since 1993.

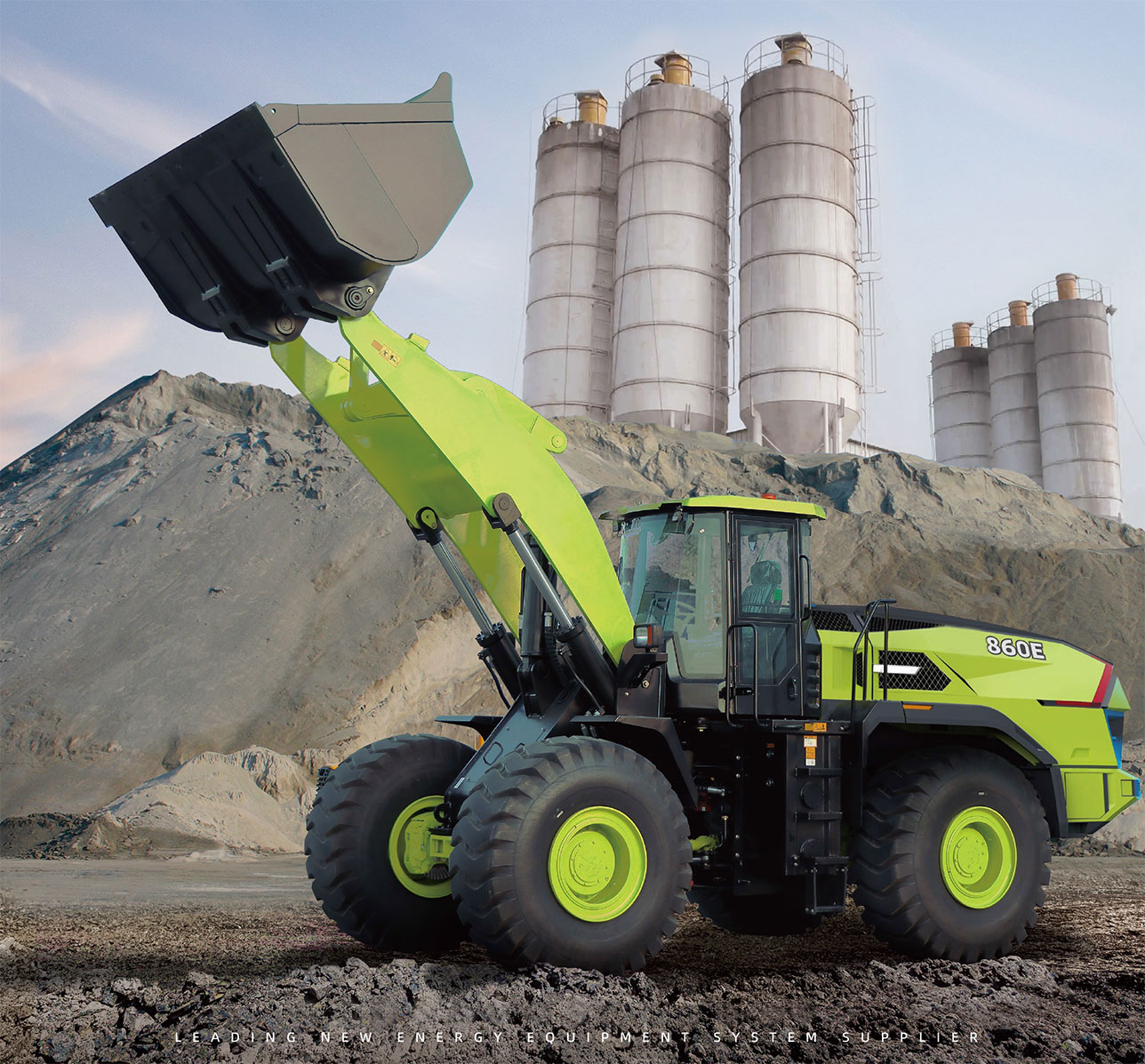

75 Eletric Wheel Loader 860E
Eletric Wheel Loader 860E
Ultra Long Battery Life
and Fast Charging
Pure Electric Drive Brings
Economic and Environmental
Benefits
42 Eletric Wheel Loader 857E Forward Looking Technologies Vehicle Development Software Three Electric Integration Mechanical
Eletric Wheel Loader 860E
Forward Looking Technologies
Vehicle Development Software
Three Electric Integration
Mechanical
-
43 Eletric Wheel Loader 857E Forward Looking Technologies Electrical Process Hydraulic Others
Eletric Wheel Loader 860E
Forward Looking Technologies
Electrical Process
Hydraulic
Others
-

Star Product
The more you load, the more money you save, and the lowest comprehensive power consumption in the industry

New Energy has gathered the earliest outstanding talents engaged in the electrification of commercial vehicles and construction machinery at home and abroad, and has the necessary knowledge structure for the industrialization of electric construction machinery, such as whole machine design, three-electric integration, software control, advanced electric drive architecture, electric drive hydraulics, high-end chassis, integrated charging and replacement technology, and intelligent networking. Through precise market analysis and customer demand-oriented, we have conducted in-depth research on key core technologies in the field of electric drive travel and electric drive operation of construction machinery, applied for dozens of patents, and provided technical support for the subsequent development of new products and maintaining technological advancement of the company. Solve the industry pain points of high cost and high emission, and provide customers with electrification, intelligence, and unmanned equipment system solutions in scenarios such as steel, mining, ports, infrastructure, and tunnels, bringing significant economic and environmental benefits to customers.

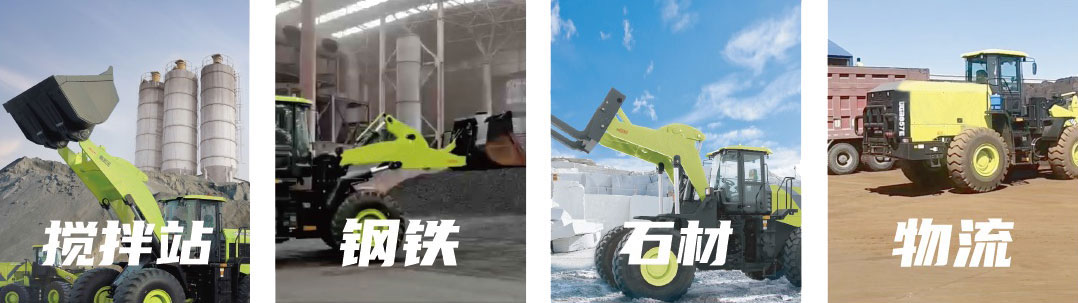

44 Eletric Wheel Loader 857E Application Fields 1
Eletric Wheel Loader 860E
Application Fields 1

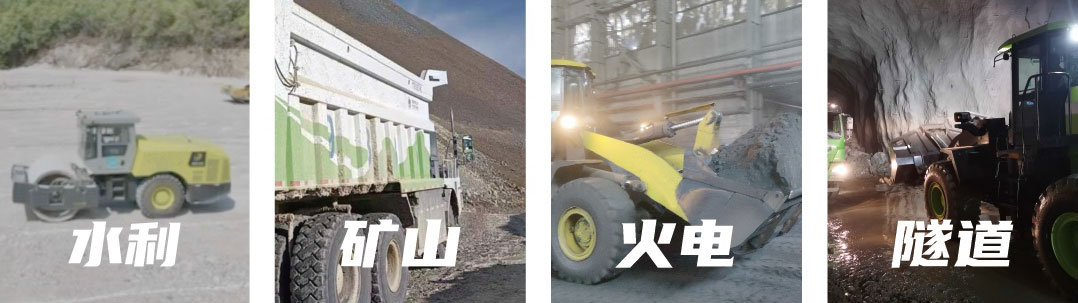

45 Eletric Wheel Loader 857E Application Fields 2
Eletric Wheel Loader 860E
Application Fields 2
Since obtaining the first electric loader in Fujian in 2021, the company has developed and sold more than ten products, including pure electric loaders (5 tons, 6 tons, 7 tons), vehicle-electric separation loaders, hybrid loaders, pure electric wheel excavators, pure electric forklifts, electric forklifts, pure electric rollers, electric wide-body mining trucks, electric rigid mining trucks, and insulated boom trucks (vehicle-mounted, spider-type), most of which are the first in the industry and have the ability to provide scenario-based solutions for new energy equipment.
The company has two major manufacturing bases in Fujian and Jiangsu, and has built a complete operation and supply chain system with an annual production capacity of 25,000+ sets.

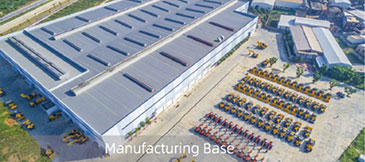

30 Manufacturing Base
Manufacturing Base
-

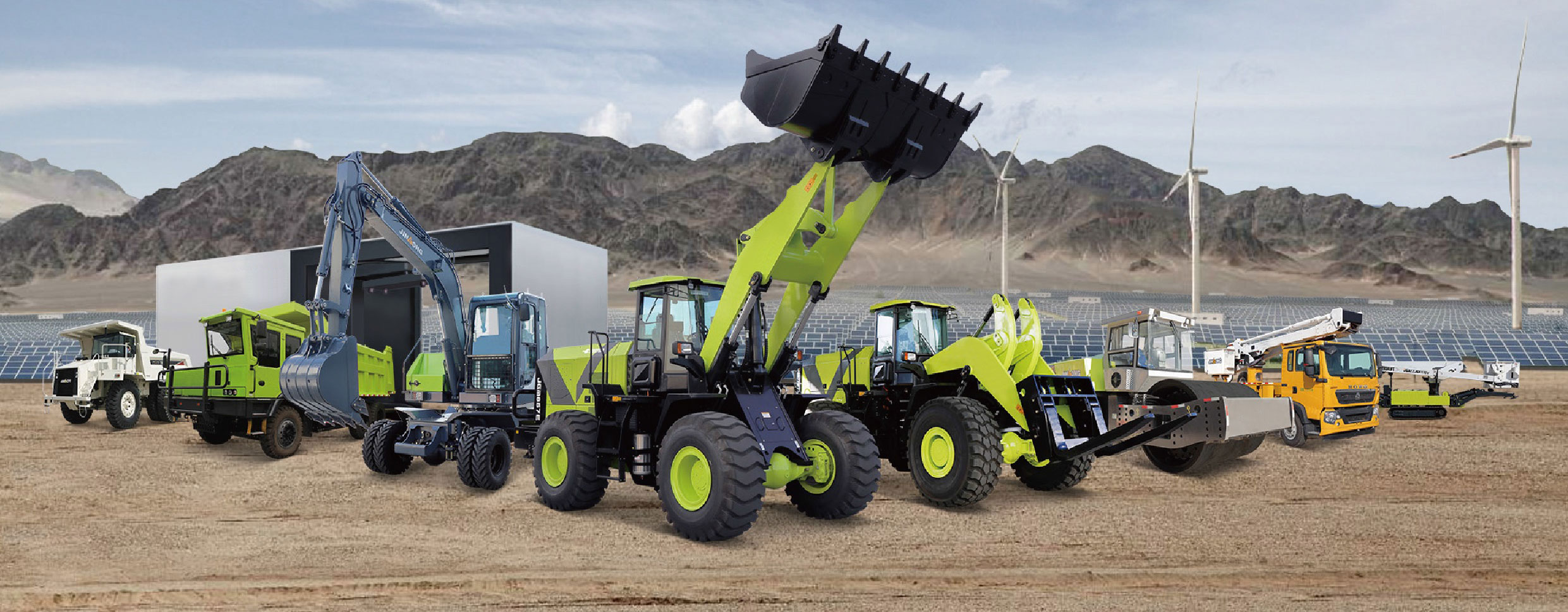

46 Electric Series of Loaders Rollers Forklifts
Electric Series of
Loaders, Rollers, Forklifts

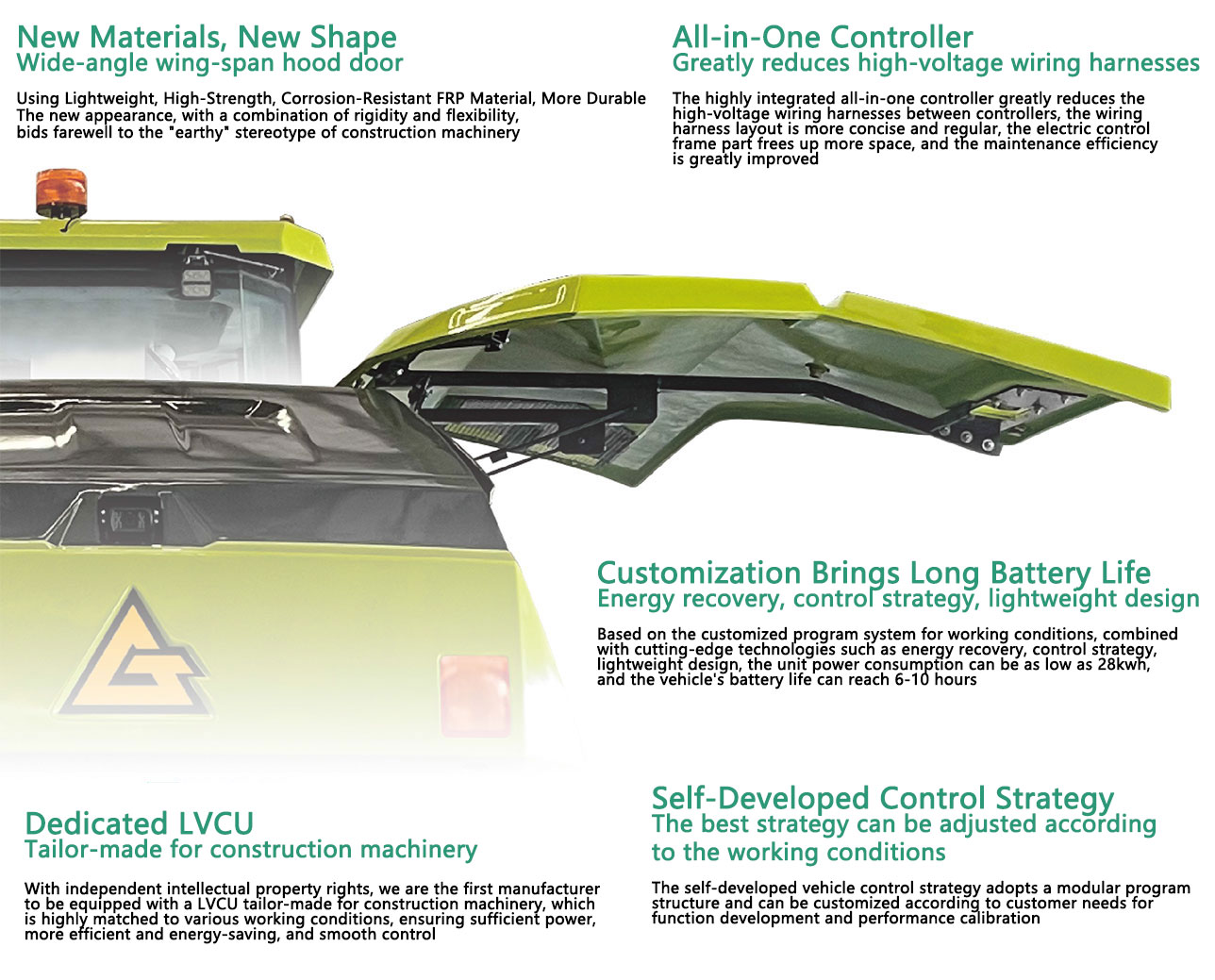

Eletric Wheel Loader 860E, Advances
Eletric Wheel Loader 860E
Advances
Eletric Wheel Loader 860E, More Performancces
Eletric Wheel Loader 860E
More Performancces

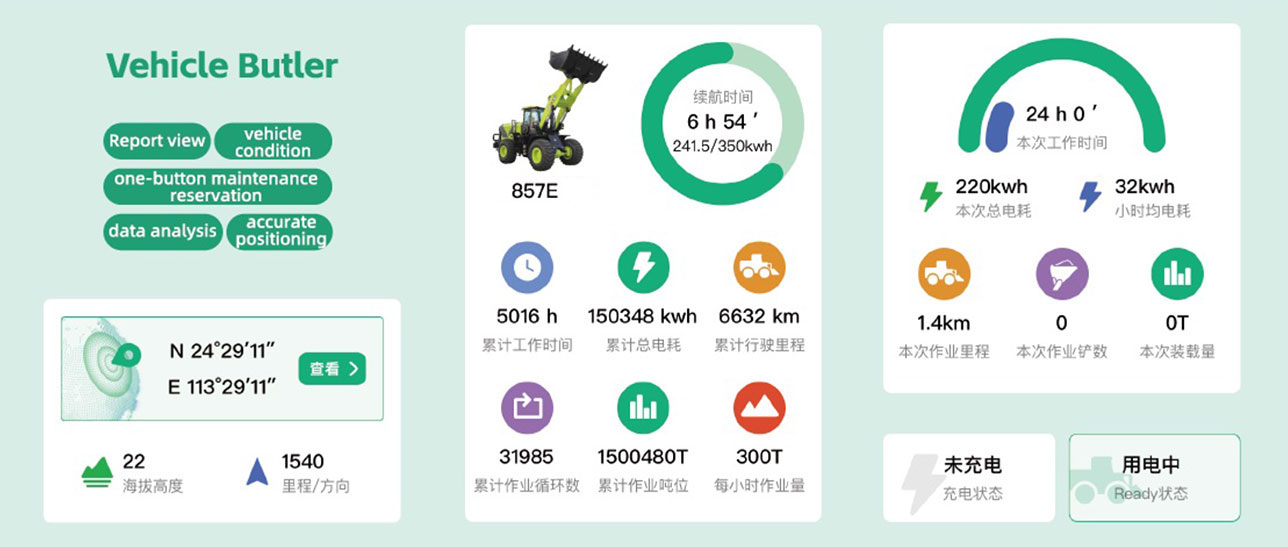

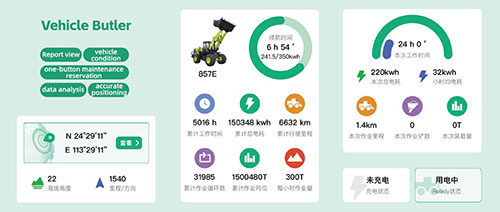

Vehicle Butler Management Interfaces
Vehicle Butler
Management Interfaces

Technical Specifications
Performance Parameters
Three items and time ≤10 s
Boom lifting time ≤5.1 s
Unloading height 3,120/3,420 mm
Pin height at Max. lift ≤4,435 mm
Unloading distance at Max. lift 1,220/1,430 mm
Digging depth 45 mm
Max. bucket angle at ground level 45°
Max. bucket angle in haul position 55°
Max. bucket angle at Max. lift 53°
Unloading angle 45°
Drive System
Traction Force ≥165 kN
Gradability 30°
Driving Speed, Forward km/h 15/40
Driving Speed, Reverse km/h 15/40
Basic Parameters
Rated load 5,800 kg
Bucket capacity 2.5-4.5m³
Digging force ≥170 kN
Operating weight of the whole machine 18,200 kg
Travel motor power 120/240 kW
Oil pump motor power 80/160 kW
Battery capacity 282/350 kWh
Working time 8-12 h
Dimensions
Ground clearance 408 mm
Cab height 3,500 mm
Wheel width 2,290 mm
Outer width of bucket 2,990 mm
Length of the whole machine (with attachments) 8,800 mm
Steering angle, either side 35°
Departure angle 30°
Minimum turning radius of bucket in haul position 7,340 mm
Turning radius, outer side of tire 6,780 mm
