RPM supplies customizable-brand Eletric Wheel Loader 805E with good prices/performances ratio made by good-reputation manufacturer Since 1993.

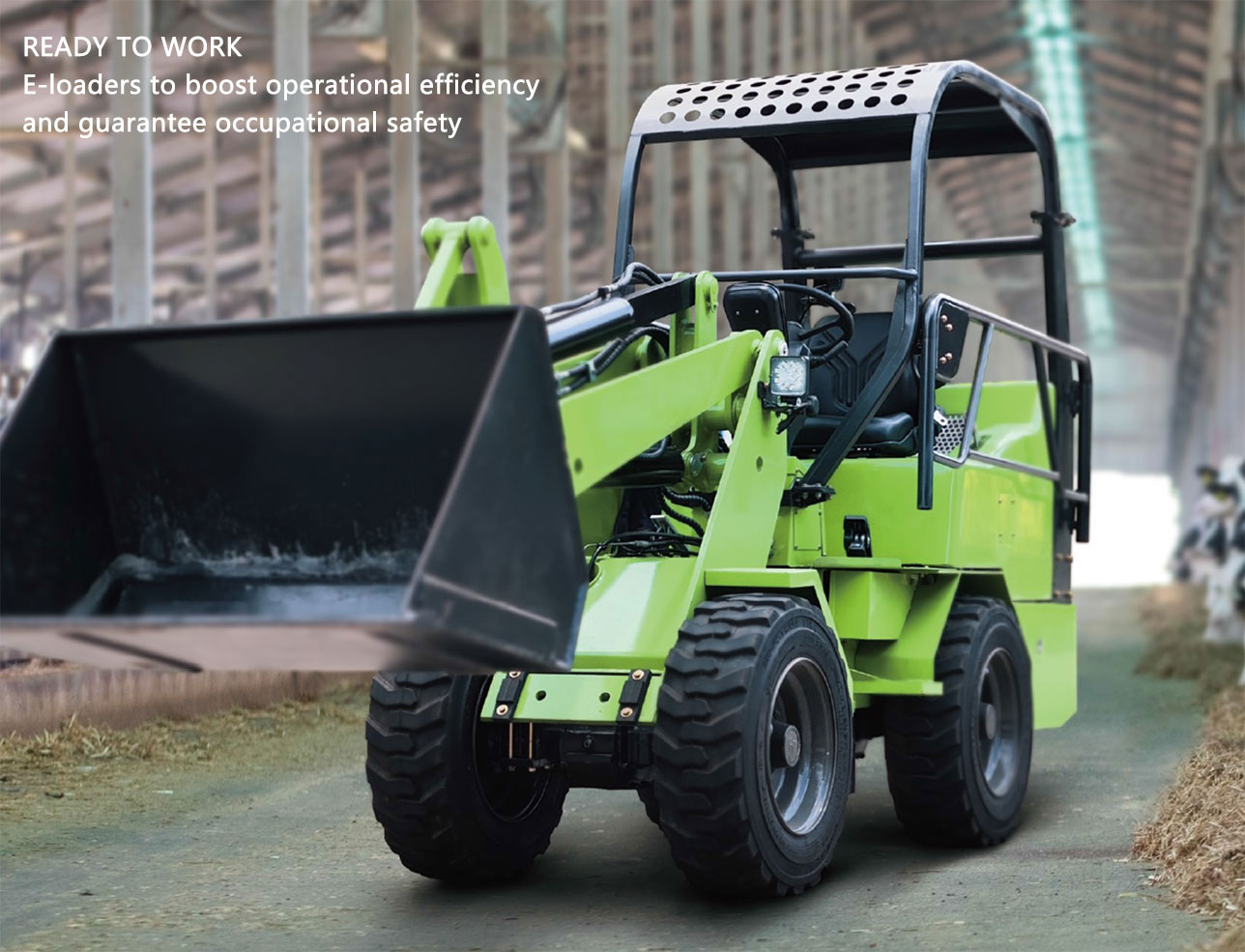

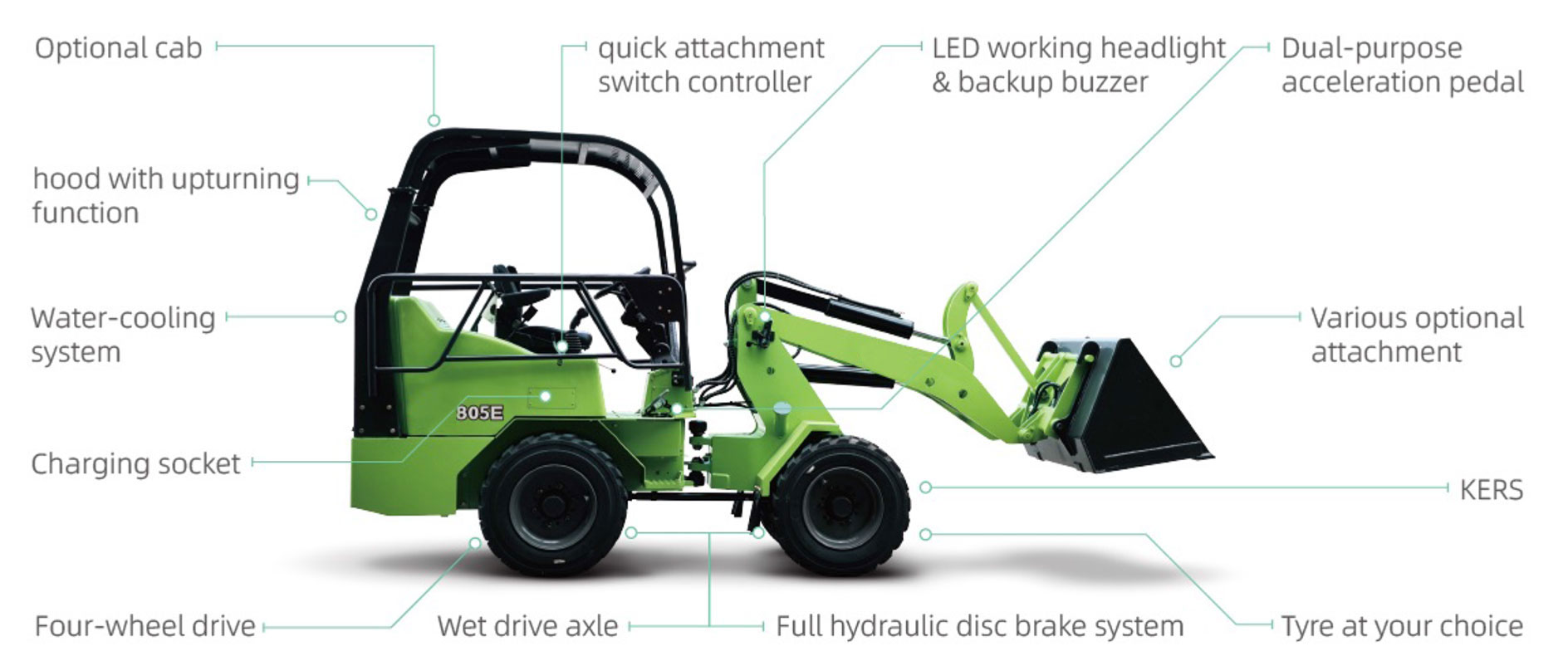

Eletric-Wheel-Loader-805E	Eletric Wheel Loader 805E Structure Description	READY TO WORK E-loaders to boost operational efficiency and guarantee occupational safety
TECHNICAL PARAMETERS YOUR NEW CHOICE Under the background of rapid growth of the new energy sector globally, we have been devoted in the vehicle and equipment core electrification technology. We, based on real working scenarios data and customers'needs, have been developing excellent products of cost-effective electric construction machinery. This is your new choice with a zero-emission, low-operating-cost and high-reliability solution.

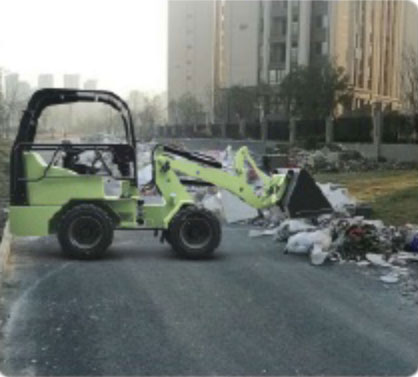

Eletric Wheel Loader 805E Application 1	Eletric Wheel Loader 805E Application 2	Eletric Wheel Loader 805E Application 3
Eletric Wheel Loader 805E Application 4	Eletric Wheel Loader 805E Application 5	1. New Energy Products are constantly updated and improved,and we reserve the right to change the design and parametrs without prior notic to users 2. The configuration and appearance of the product in the picture are different from the actual model,and the configuration and appearance of the product shall be subject to the actual product.

Strong reliability to guarantee efficient up-time operation.	High-quality components to reduce down-time rate to an extremely low level.	Excellent cost performance. High configuration at preferential price. Considerably low maintenance cost.
IP67-level protection on power source system and automatic parking function at slopes to ensure operators' safety.	Highly adaptive to various working scenarios with diverse attachment.	Integrated display and operation function. Excellent vehicle lighting and visibility.

Eletric Wheel Loader 805E

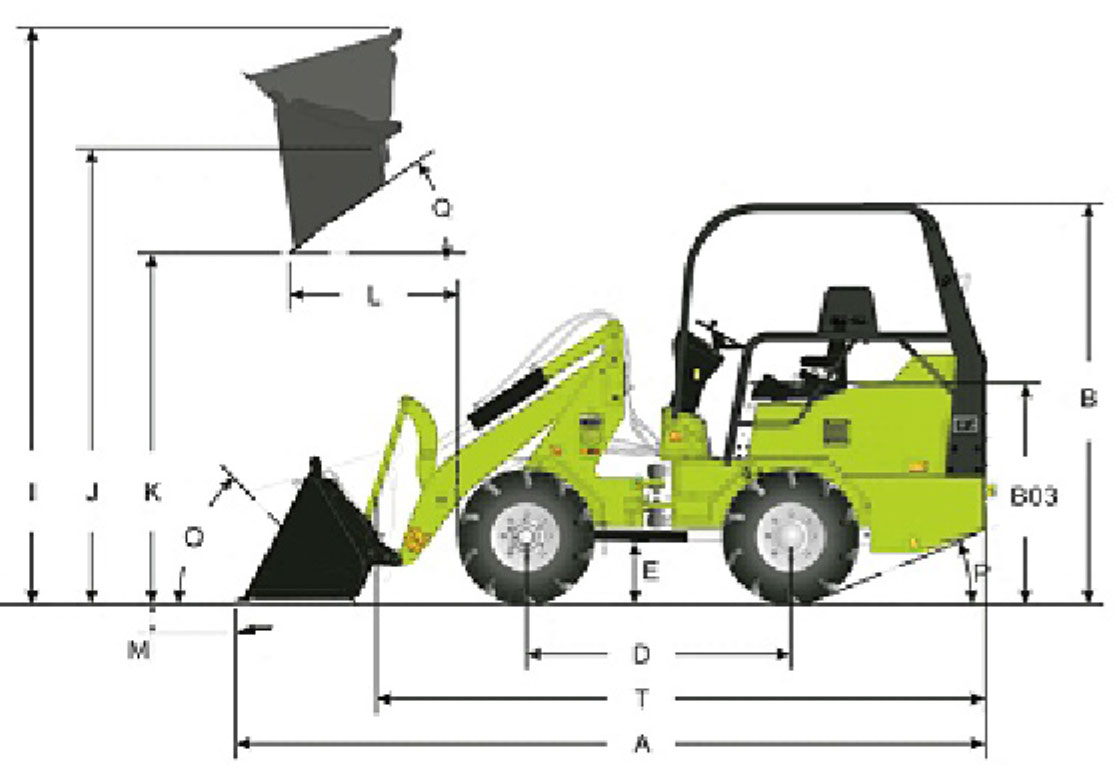

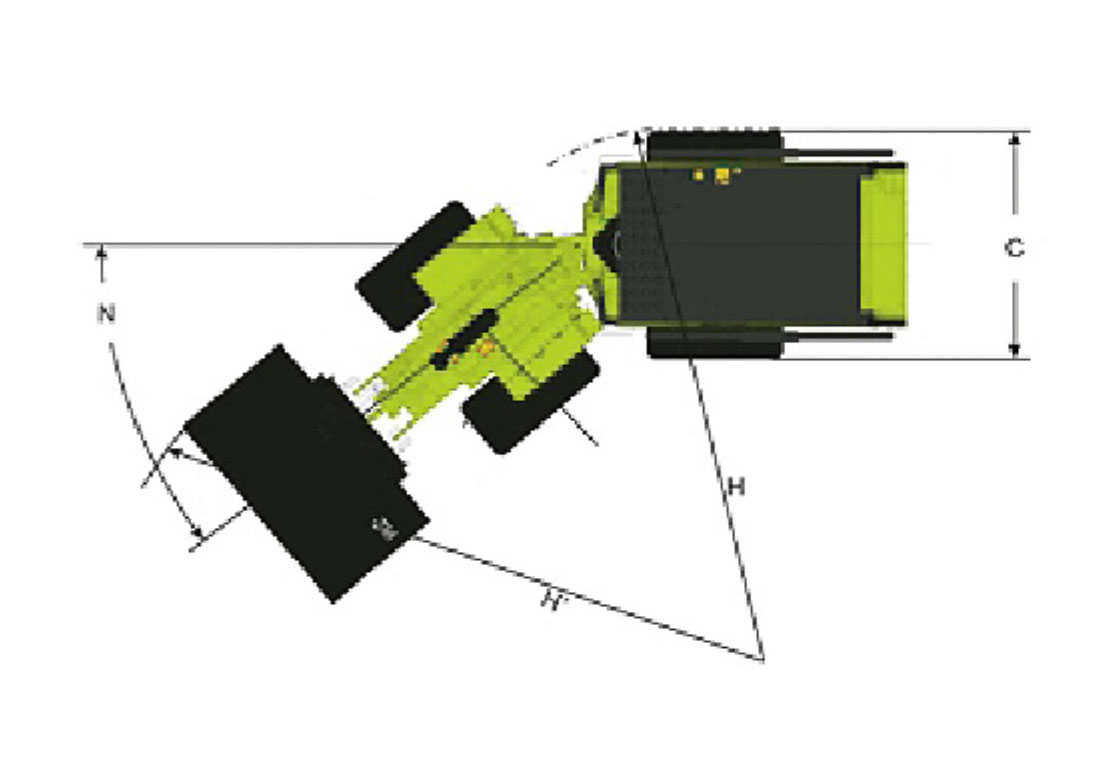

Drawing

Main Parameters
A.Total length with standard bucket	4330 mm
A'.Total length at bucket pivot	4260 mm
Total height without cab	1970 mm
B.Total height with cab	2330 mm
C.Total width
with narrow-base tyres	1075 mm
with wide-base tyres	1329 mm
D.Wheel base	1550 mm
E.Minimum ground clearance	345 mm
F.Wheel track width
with narrow-base tyres	812 mm
with wide-base tyres	939 mm
G.Bucket Width	1370mm
H.Outer edge turning radius	2541 mm
H'.Maximum turning radius	3037 mm
I.Maximum working height	3630 mm
J.Maximum height of pin shaft at maximum bucket height	2950 mm
K.Maximum dumping height	2190 mm
L.Dumping reach	630 mm
M.Digging depth	150 mm
N.Maximum steering angle	43°
0.Backroll angle on the ground	42°
P.Departure angle	22°
Q.Dumping angle at maximum dumping height	32°
T.Total length without bucket	3550 mm
