RPM supplies customizable-brand Electric Wheel Forklift Loader 771FT32E with good prices/performances ratio made by good-reputation manufacturer Since 1993. Save more money, Made for green mines

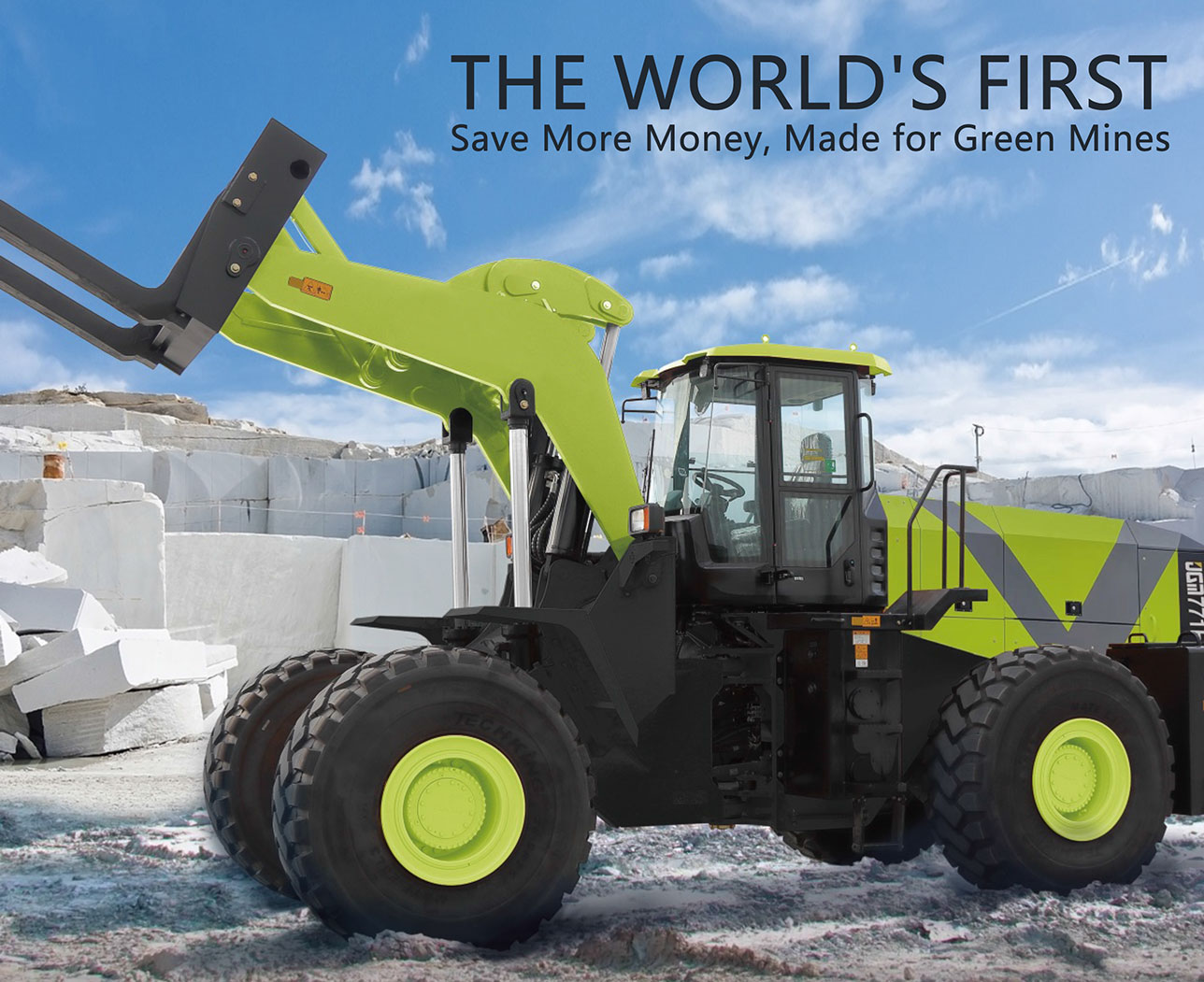

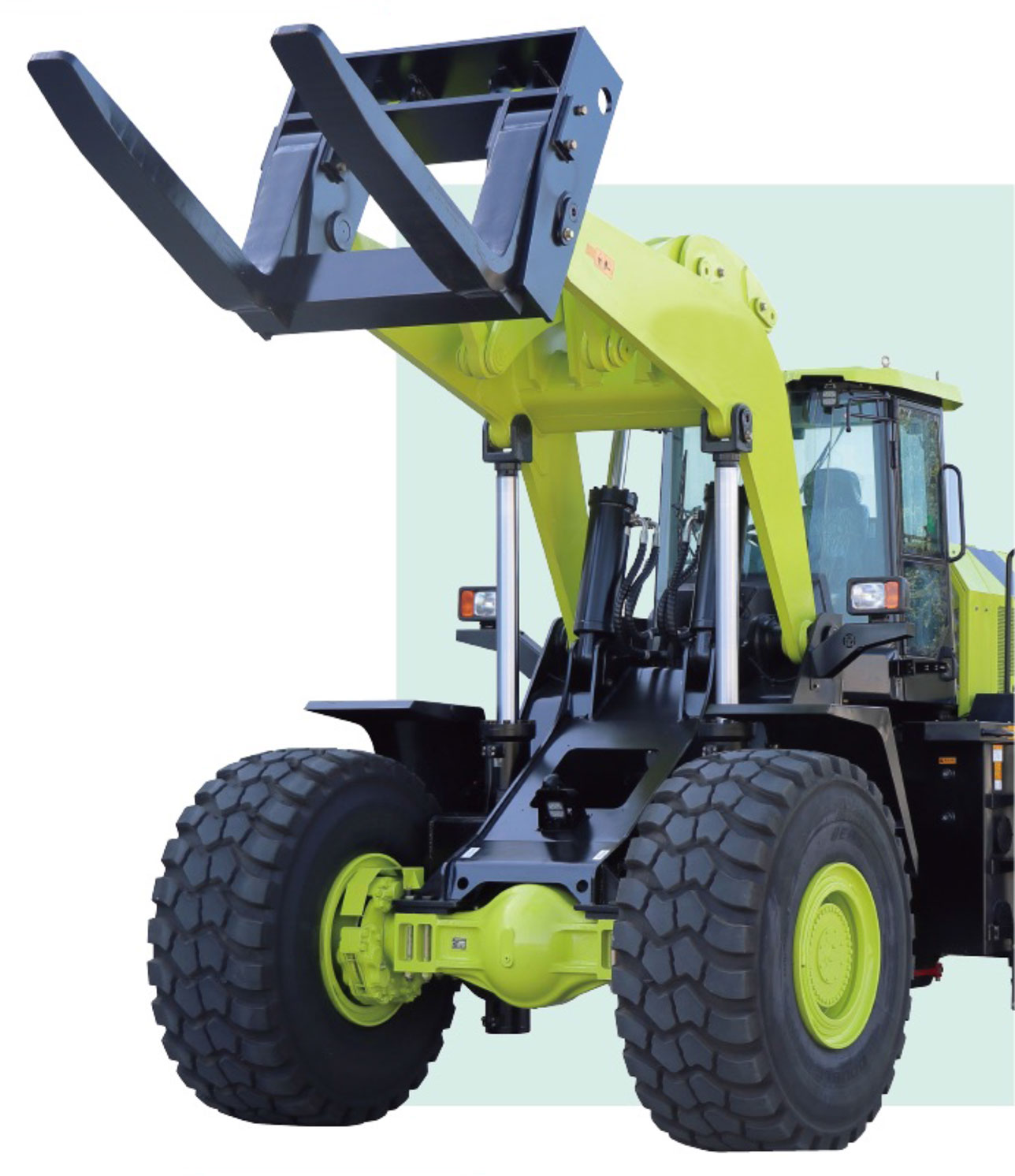

 Electric-Wheel-Forklift-Loader 771FT32E Operating Weight 32000kg Battery Capacity 423kWh Working 8-10 Hours |
 Wheel-Forklift-Loader-771FT32E Electric Type Operating Weight 32000kg Battery Capacity 423kWh Working 8-10 Hours |
 Wheel-Forklift-Loader-771FT32E Electric Type Operating Weight 32000kg Battery Capacity 423kWh Working 8-10 Hours |
| TECHNICAL PARAMETERS | |
| Category | Parameter Values |
| Traction | ≥240 kN |
| Maximum climb(fully loaded) | 20° |
| Hydraulic cycle time | 19s |
| Traveling speed | 0-32 km/h |
| Traveling motor power | 250 kW |
| Fuel pump motor power | 105 kW |
| Battery capacity | 423 kWh |
| Working hours | 8-10 hr |
| Overall weight | 35,250 kg |
| Max.Load capacity (≤1600mm from ground) | 32,000 kg |
| Load center distance | 900 mm |
| Max.lifting height of fork surface | 3,500 mm |
| Fork size (L*W*H) | 1,500*220*130 mm |
| Maximum front/rear fork tilt angle | 25/29° |
| Overall dimensions(L*W*H) | 9,640*3,100*3,680 mm |
| Minimum Ground Clearance | 480 mm |
| Steering angle | 35° |
| Turning radius | 17,000 mm |
| Departure Angle | 20° |
| Counterweight width | 2,800 mm |
| 1. New Energy Products are constantly updated andimproved, and we reserve the right to change the design and parameters without prior notice to users. 2. The configuration and appearance of the product in the picture are different from the actual model, and the configuration and appearance o the product shall be subject to the actual product. |
|
 Vehicle Butler Management Interfaces |

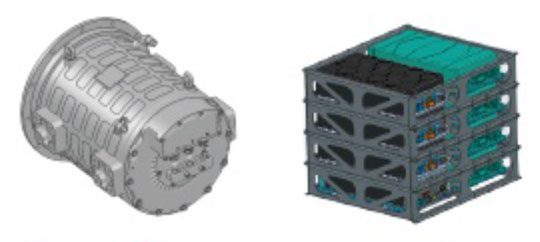

| ADVANTAGEOUS FEATURES |  High Level Safety 423kWh LFP Batteries Surging Power Long Endurance - |
 High Adaptivity to Harsh Environment 35℃~45℃ Altitude Under 5000m Waterproof IP67 Dustproof Protection |
| Surging Power, Long Endurance High-speed electric motors boost driving and operating power, high-level-safety LFP batteries with a large capacity option of 423 kWh to extend endurance, higher transmission efficiency by dual electric motors direct driving, liquid-cooling system for batteries is independently controlled, to ensure highly efficient output from batteries. |
High Adaptivity to Harsh Environment Excellent performance at a temperature of -35-45℃ and an altitude under 5,000m, IP67 high-level waterproof and dustproof protection brings strong reliability even in extreme environments. |
|

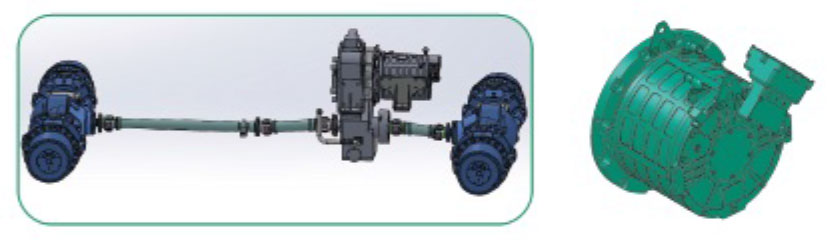

 Outstanding Transmission Hydraulic System |

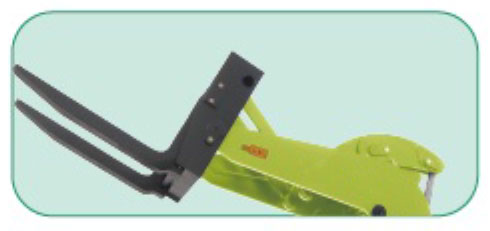

 High Strength Structrual Parts |

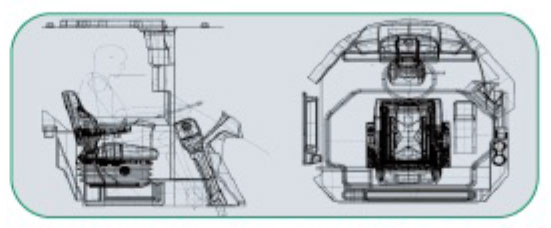

 Safe and Comfortable Operating Experience |
| Outstanding Transmission and Hydraulic System Hydraulic system with dual-pump converging while prior steering works efficiently but low energy consumption, hydraulic auxiliary components with high-standard and new process technology, guaranteeing reliability of the hydraulic system, full-hydraulic coxial flow-amplification steering system enables flexible steering operation. |
High-Strength Structural Parts Dual-rockerarm Z-shape inversion structure to improve bucket breakout and elevating force, frame and working devices main hinged shaft holes adapt dustproof structure with better sealing effect, guaranteeing fully intenal lubrication and product reliability, professional finite element analysis has been applied to optimize equipment structual strength to adapt to harsh working conditions. |
Safe and Comfortable Operating Experience Large-space full-view cab, configured with 360° all-round camera and large screen display, ensuring operation safety, improve operating comfort with dustproofness, vibration absorption, noise reduction, standard fan heater and optional AC system, cab with four-point elastic suspension and two-way vibration absorption, reduce noise in the cab with acoustic-absorption materials and ground mat. |
 Electric Wheel Forklift Loader 771FT32E Forward Looking Technologies Vehicle Development Software Three Electric Integration Mechanical |
 Electric Wheel Forklift Loader 771FT32E Forward Looking Technologies Electrical Process Hydraulic Others |
| New Energy has gathered the earliest outstanding talents engaged in the electrification of commercial vehicles and construction machinery at home and abroad, and possesses the necessary knowledge structure for the industrialization of electric construction machinery, such as machine design, EIC system integration, software control, advanced electric drive architecture, electric drive hydraulics, high-end chassis, charging and battery swapping integrated electric technology, and intelligent network connection. Through precise analysis of the market and customer demand-oriented, we have conducted in-depth research on the key core technologies in the field of electric drive travel and electric drive operation of construction machinery, and applied for dozens of patents, which provide technical support for the subsequent development of the company's new products and the maintenance of technological advancement. Solving the industry pain point of high cost and high emission, we provide customers with electrified, intelligent and unmanned equipment system solutions in the scenarios of iron and steel, mines, ports, infrastructure, tunnels, etc., which brings significant economic and environmental benefits to customers. |
|

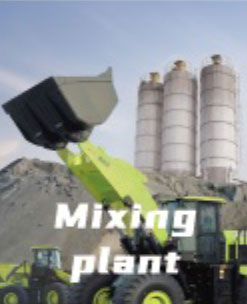

 Wheel Loader for Mixing Plant |

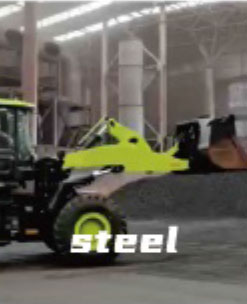

 Wheel Loader for Steel Plant |

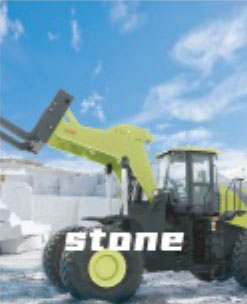

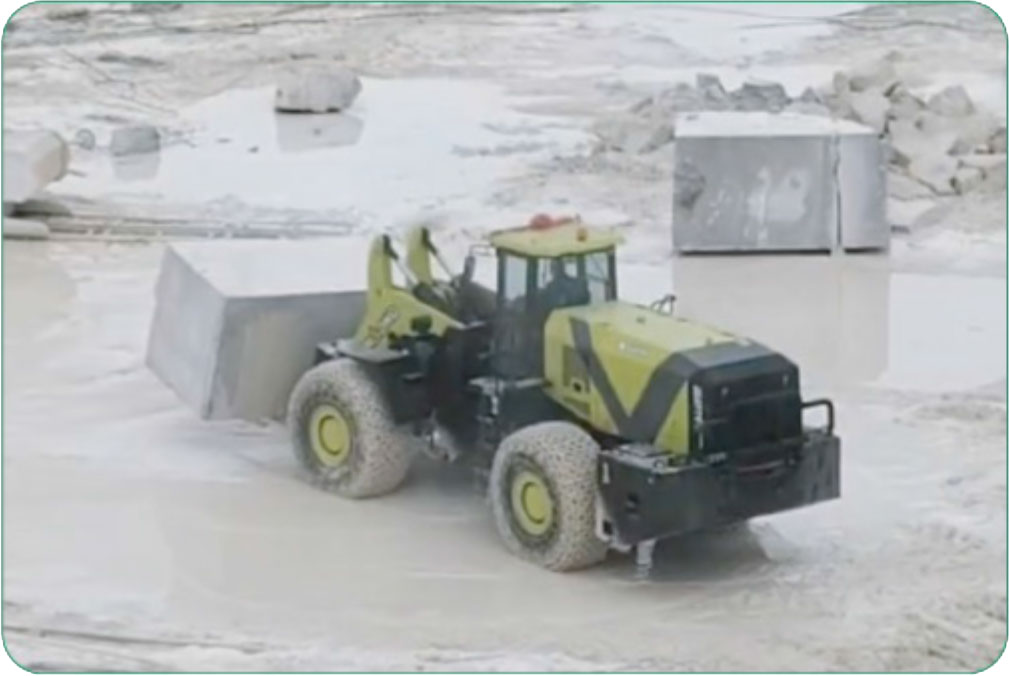

 Wheel Forklift Loader for Stone Mine |

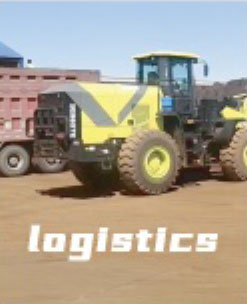

 Wheel Loader for Logistics |

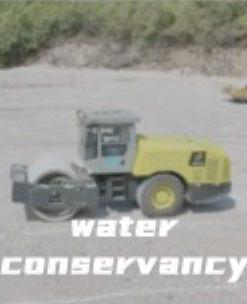

 Wheel Roller for Water Conservancy |

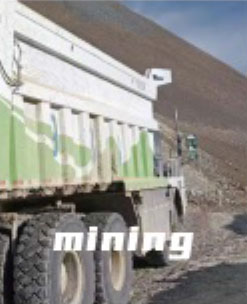

 Wheel Truck for Mining |

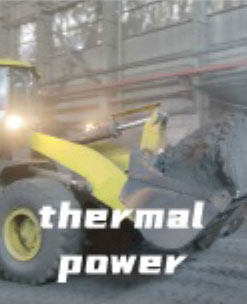

 Wheel Loader for Thermal Power |

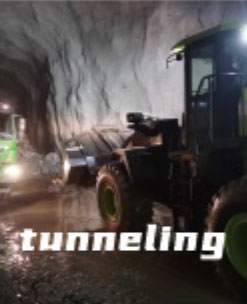

 Wheel Loader for Tunnelling |
| Since obtaining the first set of electric loader in Fujian in 2021, the company has researched and developed and formed sales of more than ten products, mosty the first in the industry, such as pure electric loaders (5 tons, 6 tons, 7 tons), battery detachable & replaceable loaders, hybrid loaders, pure electric wheeled excavators, electric forklift loaders, electric forklifts, pure electric rollers, electric wide-body dump trucks, electric rigid mining trucks, and insulated bucket-arm trucks (vehicle-carying type, spider-type), and so on, which are the first in the industry, and it is equipped with the capability of providing scenario-based solutions for new energy equipments. With two manufacturing bases in Fujian Province and Jiangsu Province, the company has buit a perfect operation and supply chain system with an annual production capacity of 25,000+ sets. | |||
 Manufacturing Base - |

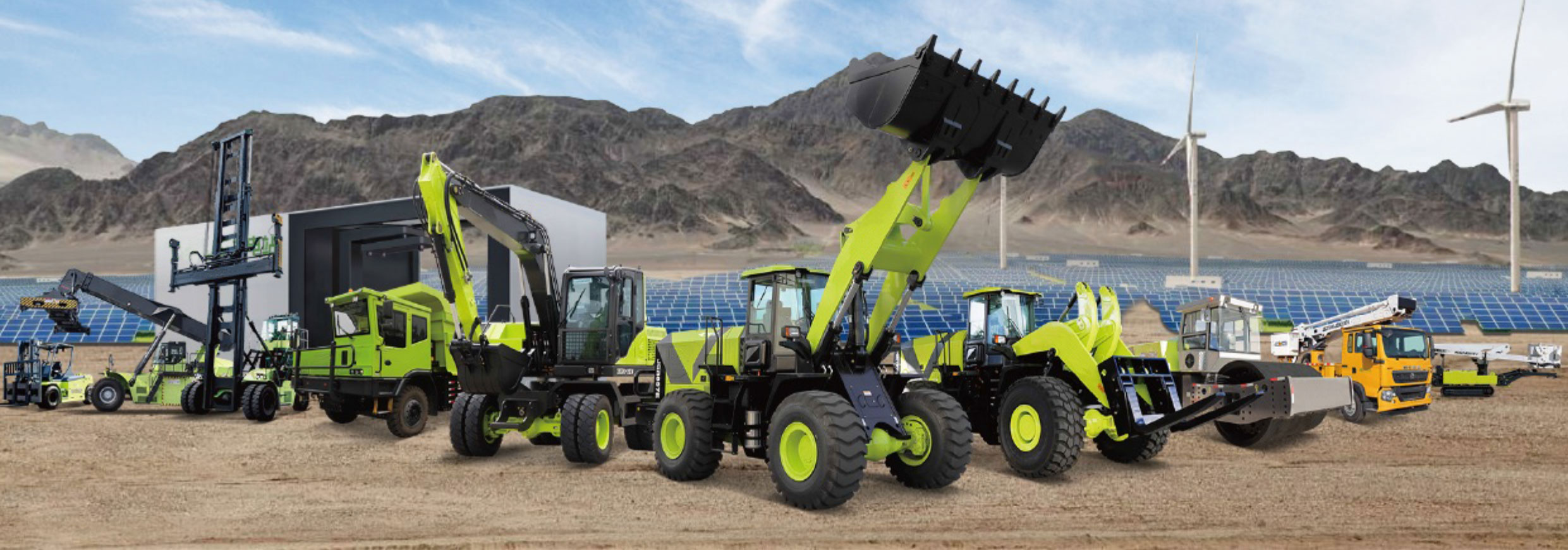

 Electric Series of Loaders Rollers Forklifts |
