RPM supplies customizable-brand Electric Mini Excavator 18E with good prices/performances ratio made by good-reputation manufacturer Since 1993.

Electric Mini Excavator 18EPure electric drive is quieter! Achieve zero-emission operation!

Your latest choice
Small mechanized construction scenes have always been affected by noise and exhaust, which has caused a great burden on the construction workers. Today, new energy technology has solved the problem of mini excavator electrification. While solving the noise and exhaust, the cost is still comparable to that of fuel equipment of the same tonnage, achieving multiple benefits such as economy, environmental protection, and the physical and mental health of the operator.

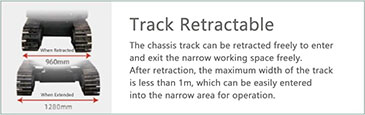

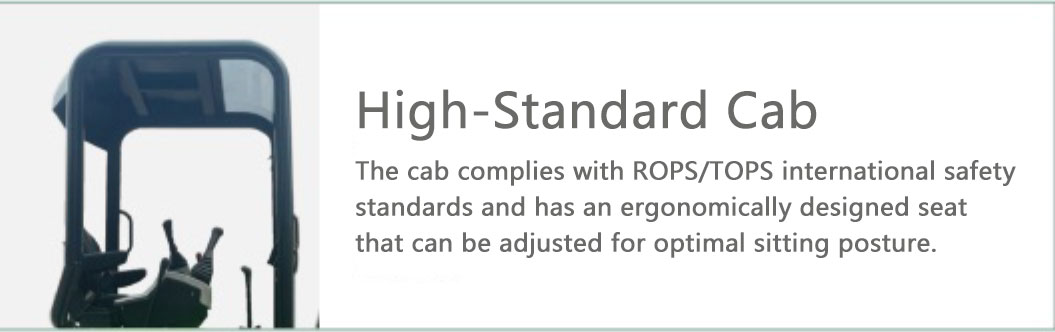

Electric Mini Excavator 18E Characteristics Telescopic Crawler	Electric Mini Excavator 18E Characteristics High Standard Cab

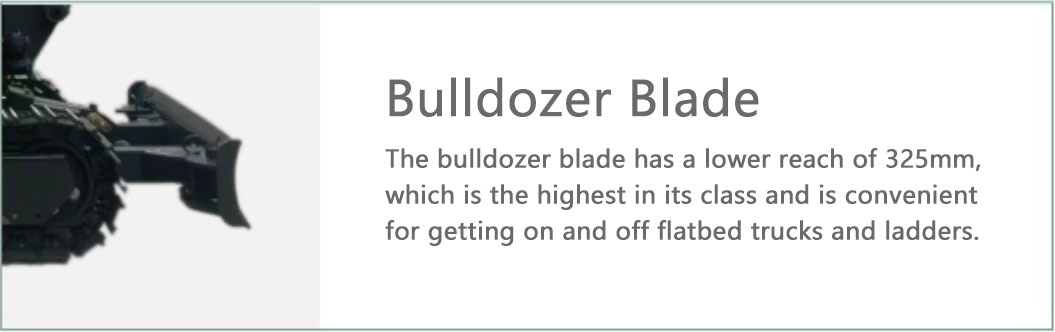

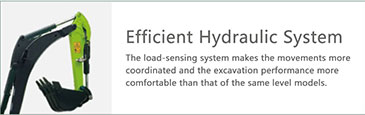

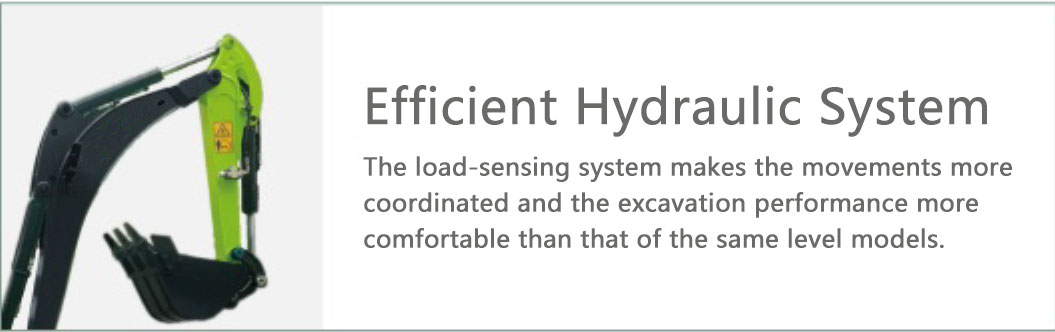

Electric Mini Excavator 18E Characteristics Bulldozer	Electric Mini Excavator 18E Characteristics Efficient Hydraulic System

Electric Mini Excavator 18E Characteristics Attachments

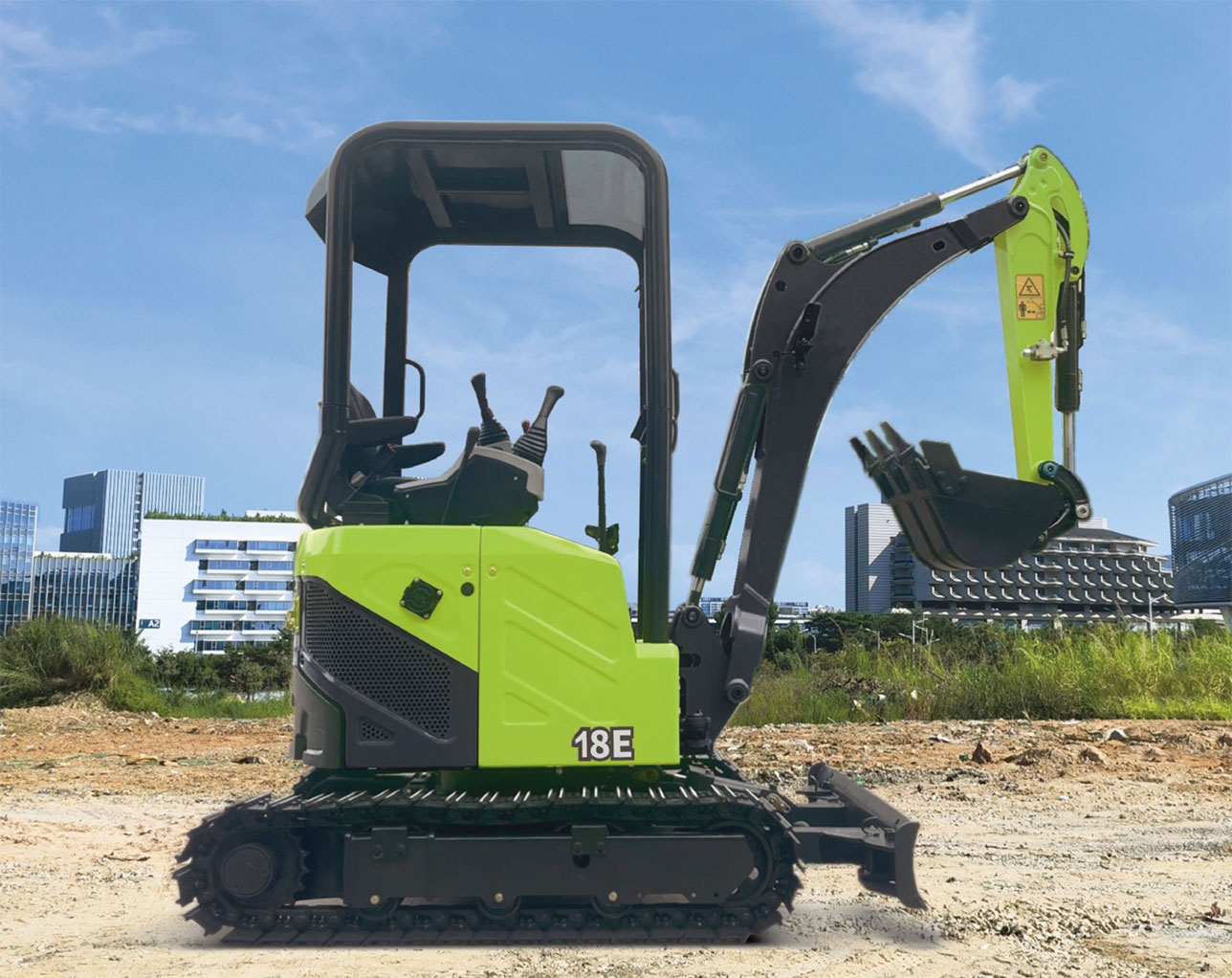

Electric Mini Excavator 18E

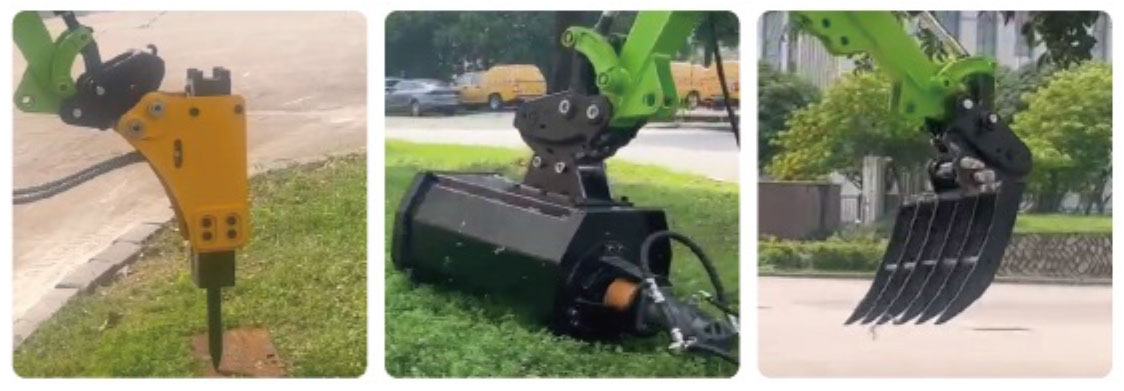

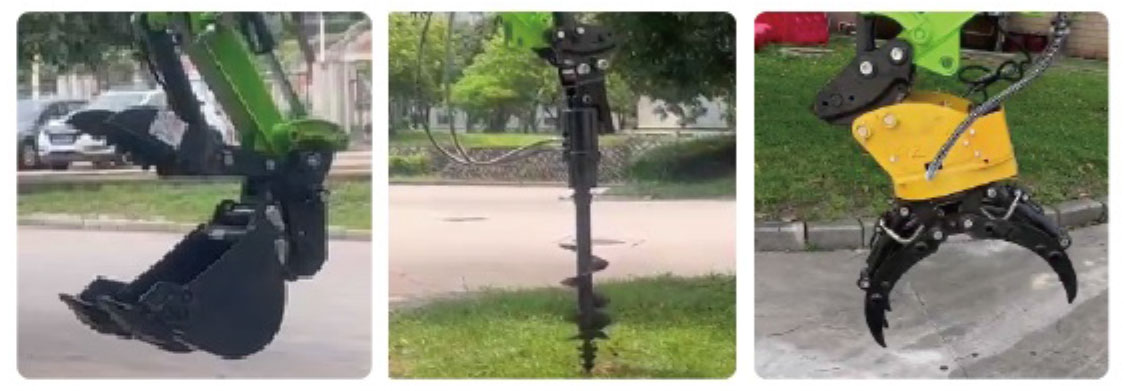

Attachments

Main Parameters (Standard Model)
Operating Weight	1,800kg
Standard Bucket Capacity	0.04m³
Max. Digging Force	15.2kN
Slewing Speed	9.1rpm/min
Climbing Ability	58% (30°)
Speed (High/Low)	4/2km/h
Endurance Time (Varies with Working Conditions)	4-6h
Charging Time (Fast Charging)	1~1.5h
Ambient Temperature	-25~65℃
1. New energy products are constantly being updated and improved. We reserve the right to change the design and parameters without informing the user in advance. 2. The product configuration and appearance in the photo are different from the actual model. The configuration and appearance of the product are subject to the actual product.

Power System
Motor Type	Permanent Magnet Synchronous Motor
Motor Rated Power	10kW
Battery Type	Lithium-ion Battery
Battery Capacity (Customizable)	15.7kWh
Operating Voltage	76.8V
Onboard Electrical System
Operating Voltage	12V
Hydraulic System
Hydraulic Oil Tank Capacity	13L
Hydraulic Flow	2*17.3L/min
Operating Pressure	215bar

Electric Mini Excavator 18E

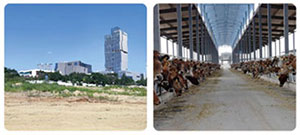

Applications

Technical Specifications
Efficient and flexible: No tail rotation, 360° barrier-free and flexible operation, side swing of the big arm, meeting the needs of operations such as wall base and side digging.	Reliable: High-quality core components keep the failure rate at an extremely low level, making it easier to use.	Economical: The purchase cost is the same as that of gasoline and electric vehicles. Pure electric drive is more economical to use and maintain.
Safety: Power system protection level IP67, certified cab and other configurations fully protect your safety.	One machine for multiple uses: A variety of attachments can be selected, the crawler can be extended and retracted freely, and the maximum width after retraction is <1m, suitable for a variety of scenarios.	Easy and comfortable: Highly integrated display and operating functions, good lighting and driving vision make work easier.

Electric Mini Excavator 18E

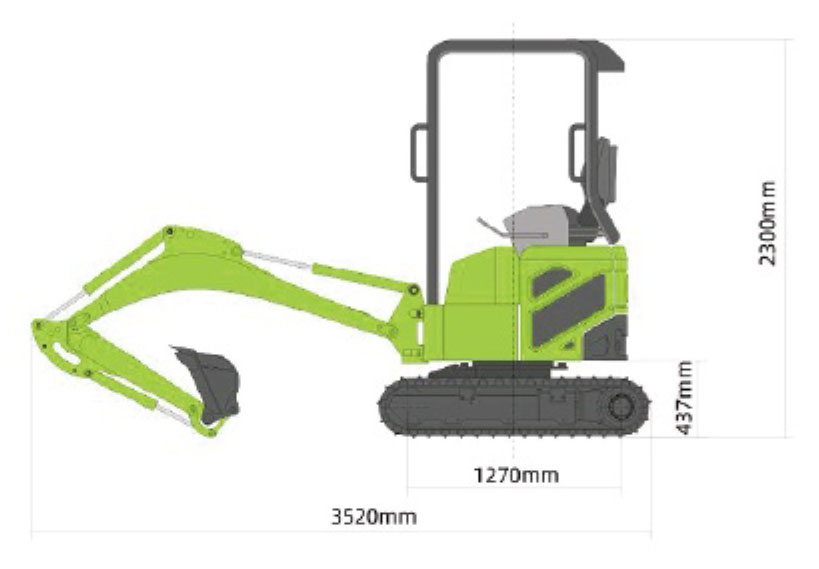

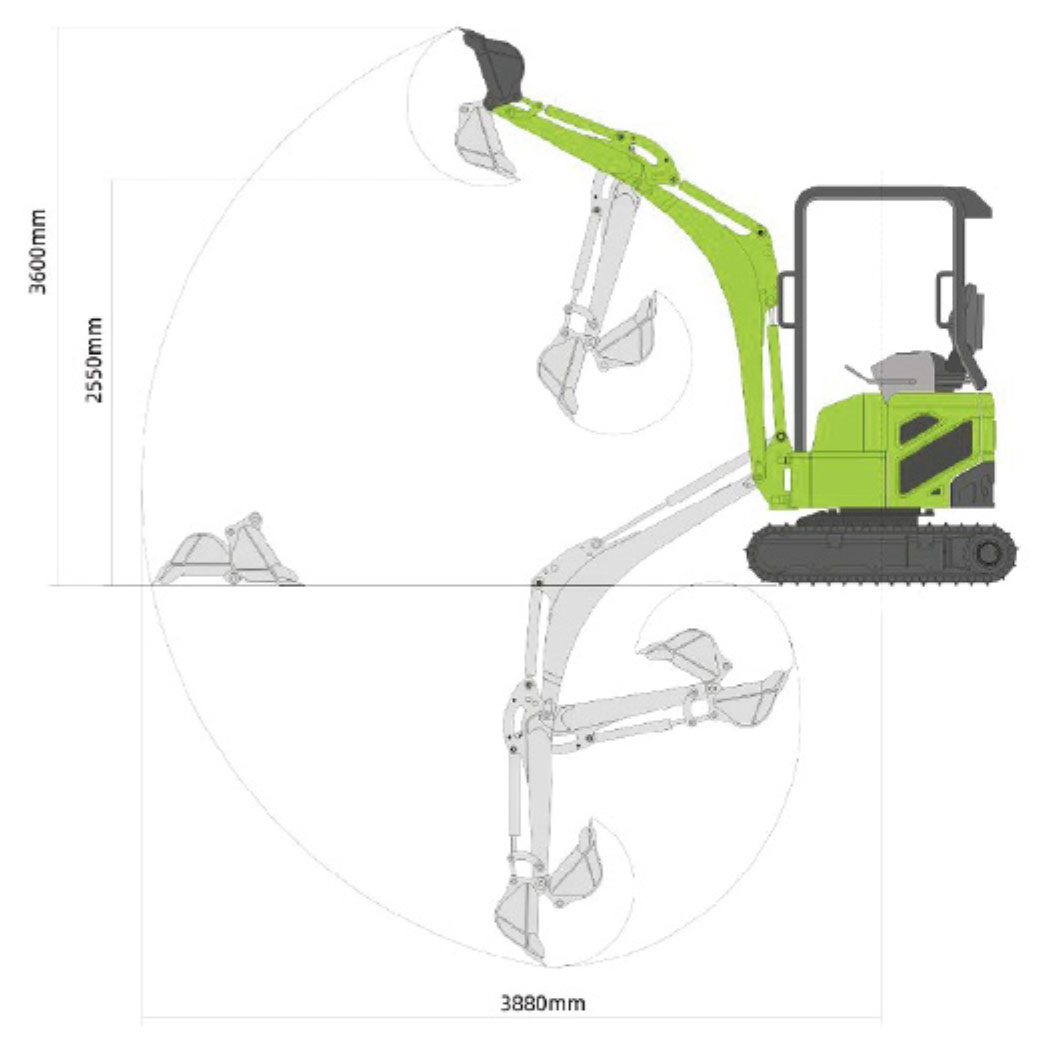

Drawing

Product Parameters
Travel speed (high/low)	4/2 km/h
Gradeability	58% (30°)
Full length when transporting	3,545 mm
Full width when transporting	990 mm
Full height when transporting	2,340 mm
Height of top of cab	2,340 mm
Track shoe width	230 mm
Rear end swing radius	650 mm
Hydraulic oil tank/hydraulic oil capacity	13/21 L
Set pressure (working device)	21.5 MPa
Set pressure (swing)	18.6 MPa
Set pressure (travel)	21.5 MPa
Maximum flow of hydraulic pump	2x17.3 L/min
Number of track sections	74 One-sided
Number of supporting wheels	3 One-sided
Maximum digging radius	3,900 mm
Maximum digging depth	2,310 mm
Maximum vertical digging depth	1,910 mm
Maximum digging height	3,540 mm
Maximum unloading height	2,440 mm
Maximum digging force (arm/bucket)	15.2 kN
1. New energy products are constantly being updated and improved. We reserve the right to change the design and parameters without informing the user in advance. 2. The product configuration and appearance in the photo are different from the actual model. The configuration and appearance of the product are subject to the actual product.
